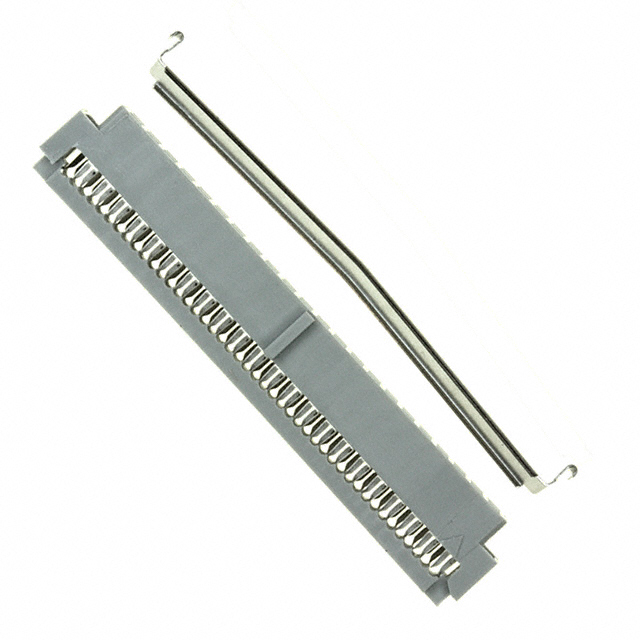

HEADER CONNECTOR,CABLE MOUNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

HEADER CONNECTOR,CABLE MOUNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	152244-0113-GB	152244 Series

Cable Termination	IDC	IDC
Color	Gray	Gray
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness	30 Áin	15 - 30 Áin
Contact Type	Female Socket	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief	Closed End, Strain Relief, Feed Through, Polarizing Key
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	44	44
Number of Rows	2	2
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

CONN RCPT 44POS IDC 28AWG GOLD

Part	Row Spacing	Row Spacing	Cable Termination	Pitch [x]	Pitch [x]	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Connector Type	Wire Gauge	Contact Finish	Color	Wire Type	Mounting Type	Contact Type
3M 152244-0203-GB	2 mm	0.079 in	IDC	0.079 in	2 mm	Closed End, Strain Relief	0.76 Ám	30 Áin	2	44	Receptacle	28 AWG	Gold	Gray	Ribbon Cable	Free Hanging (In-Line)	Female Socket
3M 152244-0113-GG	2 mm	0.079 in	IDC	0.079 in	2 mm	Feed Through, Polarizing Key, Strain Relief	0.38 µm	15 µin	2	44	Receptacle	28 AWG	Gold	Gray	Ribbon Cable	Free Hanging (In-Line)	Female Socket
3M 152244-0110-GG	2 mm	0.079 in	IDC	0.079 in	2 mm	Feed Through, Polarizing Key	0.38 µm	15 µin	2	44	Receptacle	28 AWG	Gold	Gray	Ribbon Cable	Free Hanging (In-Line)	Female Socket
3M 152244-0113-GB	2 mm	0.079 in	IDC	0.079 in	2 mm	Feed Through, Polarizing Key, Strain Relief	0.76 Ám	30 Áin	2	44	Receptacle	28 AWG	Gold	Gray	Ribbon Cable	Free Hanging (In-Line)	Female Socket
3M 152244-0110-GB	2 mm	0.079 in	IDC	0.079 in	2 mm	Feed Through, Polarizing Key	0.76 Ám	30 Áin	2	44	Receptacle	28 AWG	Gold	Gray	Ribbon Cable	Free Hanging (In-Line)	Female Socket
3M 152244-0100GG	2 mm	0.079 in	IDC	0.079 in	2 mm	Feed Through	0.38 µm	15 µin	2	44	Receptacle	28 AWG	Gold	Gray	Ribbon Cable	Free Hanging (In-Line)	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44 Position Rectangular Receptacle Connector IDC Gold 28 AWG
