1101 MC005

Active

ALPHA WIRE

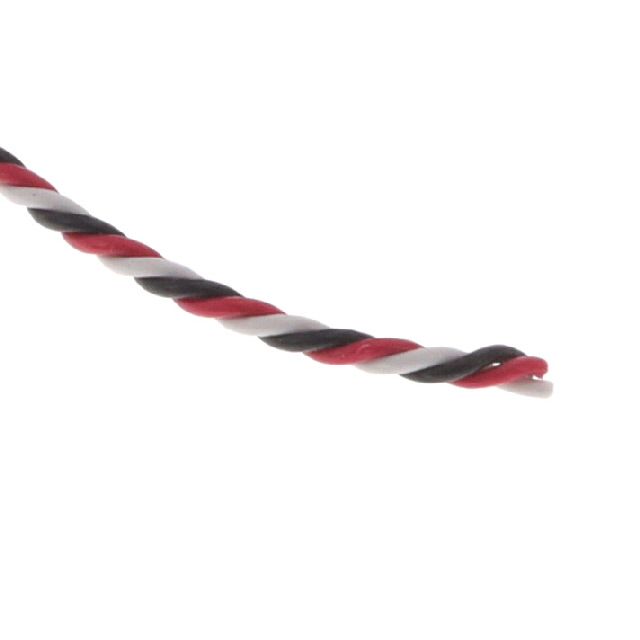

CABLE 3COND 32AWG MULTIPLE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 32AWG MULTIPLE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	1101 MC005

Cable Type	Multi-Conductor
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	40 AWG
Jacket (Insulation) Diameter [diameter]	0.063 in
Jacket (Insulation) Diameter [diameter]	1.6 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	200 V
Wire Gauge	32 AWG

CABLE 3COND 32AWG MULTIPLE 100'

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Cable Type	Number of Conductors	Usage	Jacket (Insulation) Material
ALPHA WIRE 1101 MC005	-20 C	80 C	30.5 m	100 ft	7	40 AWG	Copper, Tinned	Multiple	32 AWG	0.063 in	1.6 mm	200 V	Multi-Conductor	3	Communication, Control	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Conductor Multi-Conductor Cable Multiple 32 AWG 100.0' (30.5m)
