011032WF125

Active

Essentra Components

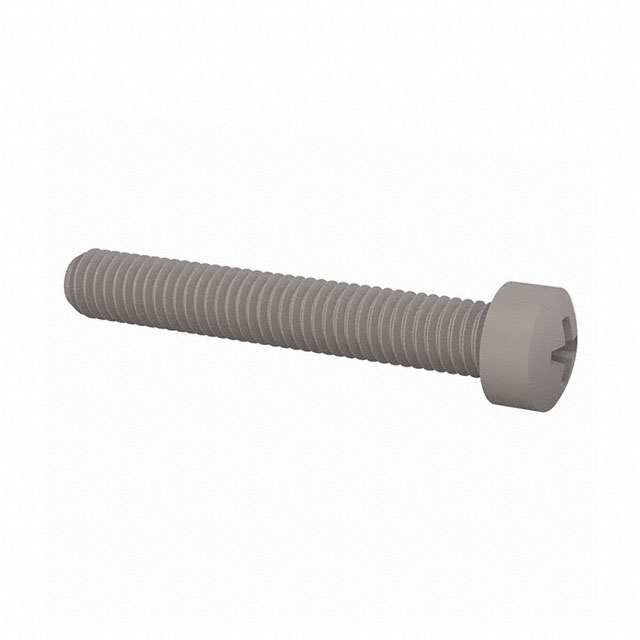

FILLISTER PHILLIPS SCREW 10-32

Deep-Dive with AI

Search across all available documentation for this part.

011032WF125

Active

Essentra Components

FILLISTER PHILLIPS SCREW 10-32

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	011032WF125	011032WF Series

Drive Type	Phillips	Phillips
Head Diameter [diameter]	7.68 mm	7.68 mm
Head Diameter [diameter]	0.303 in	0.303 in
Head Height	8.53 mm	8.53 mm
Head Height	0.336 in	0.336 in
Length - Below Head	-	0.125 - 9.53 "
Length - Below Head	-	0.375 - 19.05 mm
Length - Below Head	-	0.125 - 0.75 "
Length - Below Head	-	0.438 in
Length - Below Head	-	11.11 mm
Length - Below Head	-	1/2
Length - Below Head [x]	31.75 mm	4.76 - 50.8 mm
Length - Below Head [x]	1.25 in	0.188 - 2 in
Length - Overall	-	13.3 - 18.06 mm
Length - Overall [x]	1.586 in	0.461 - 2.336 in
Length - Overall [x]	40.28 mm	11.71 - 59.33 mm
Material	Nylon	Nylon
Screw Head Type	Pan Head	Pan Head
Thread Size	#10-32	#10-32
Type	Machine Screw	Machine Screw

011032WF Series

FILLISTER PHILLIPS SCREW 10-32

Part	Head Height	Head Height	Length - Overall [x]	Length - Overall [x]	Type	Thread Size	Screw Head Type	Head Diameter [diameter]	Head Diameter [diameter]	Length - Below Head [x]	Length - Below Head [x]	Drive Type	Material	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall	Length - Below Head [custom]	Length - Below Head [custom]	Length - Below Head
Essentra Components 011032WF200	8.53 mm	0.336 in	2.336 in	59.33 mm	Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in	50.8 mm	2 in	Phillips	Nylon
Essentra Components 011032WF075	8.53 mm	0.336 in	1.086 in	27.58 mm	Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in			Phillips	Nylon	0.75 "	19.05 mm	0.75 "
Essentra Components 011032WF106	8.53 mm	0.336 in			Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in			Phillips	Nylon
Essentra Components 011032WF037	8.53 mm	0.336 in	0.711 in		Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in			Phillips	Nylon	9.53 mm	0.375 "	0.375 "	18.06 mm
Essentra Components 011032WF018	8.53 mm	0.336 in	0.524 in		Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in	4.76 mm	0.188 in	Phillips	Nylon				13.3 mm
Essentra Components 011032WF175	8.53 mm	0.336 in			Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in	44.45 mm	1.75 in	Phillips	Nylon
Essentra Components 011032WF025	8.53 mm	0.336 in	0.586 in	14.88 mm	Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in			Phillips	Nylon	0.25 in	6.35 mm	0.25 in
Essentra Components 011032WF043	8.53 mm	0.336 in			Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in			Phillips	Nylon					0.438 in	11.11 mm
Essentra Components 011032WF012	8.53 mm	0.336 in	0.461 in	11.71 mm	Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in			Phillips	Nylon	0.125 in	3.18 mm	0.125 in
Essentra Components 011032WF050	8.53 mm	0.336 in	0.836 in	21.23 mm	Machine Screw	#10-32	Pan Head	7.68 mm	0.303 in			Phillips	Nylon		12.7 mm	0.5 in				1/2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.07

Description

General part information

011032WF Series

#10-32 Pan Head Machine Screw Phillips Drive Nylon

Documents

Technical documentation and resources

No documents available
