M22-1930046
ObsoleteHarwin Inc.
CONN SHUNT 2POS OPEN 2MM TIN
M22-1930046
ObsoleteHarwin Inc.
CONN SHUNT 2POS OPEN 2MM TIN
Description
General part information
M22-1930046

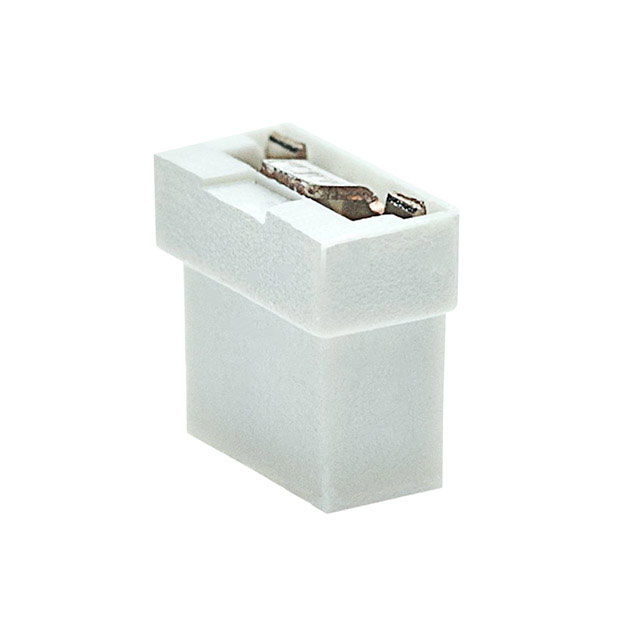

2 (1 x 2) Position Shunt Connector Gray Open Top 0.079" (2.00mm) Tin
Technical Specifications
Parameters and characteristics for this part
| Specification | M22-1930046 |
|---|---|
| Color | Gray |
| Contact Finish | Tin |
| Contact Finish Thickness | 118.1 µin |
| Current Rating | 2 A |
| Gender | Female Sockets |
| Grid Columns | 2 |
| Grid Rows | 1 |
| Height | 0.138 in |
| Housing Material | Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) | 2 |
| Pitch | 0.079 in |
| Type | Open Top |
| Voltage Rating | 250 V |
