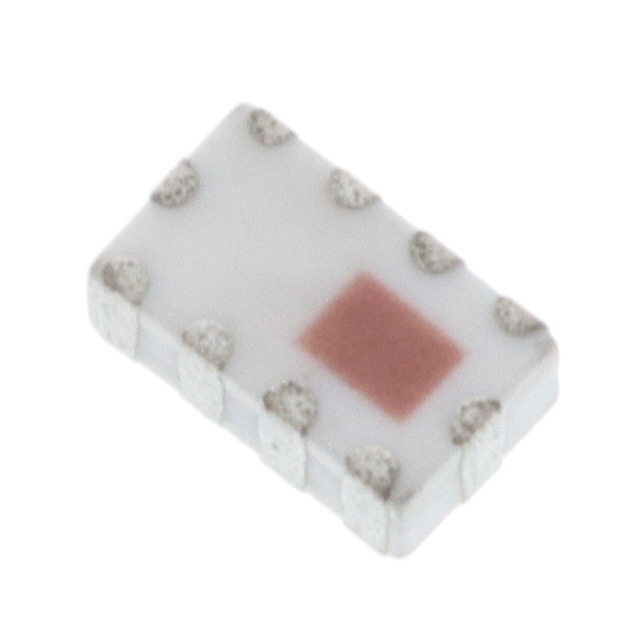

0868BM15G0027001E
ActiveJohanson Technology Inc.
BALUN 865MHZ-870MHZ 50 0805
0868BM15G0027001E
ActiveJohanson Technology Inc.
BALUN 865MHZ-870MHZ 50 0805
Description
General part information
0868BM15G0027001E
RF Balun 865MHz ~ 870MHz 50Ohm 0805 (2012 Metric), 10 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | 0868BM15G0027001E |
|---|---|
| Frequency Range (Max) | 870 MHz |
| Frequency Range (Min) | 865 MHz |
| Impedance - Balanced | 50 Ohm |
| Impedance - Unbalanced | 50 Ohm |
| Insertion Loss (Max) | 2 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 10 PC Pad |
| Phase Difference | 180 ° |
| Phase Difference Tolerance | 10 ° |
| Return Loss (Min) | 10 dB |
