1-66358-0
ActiveTE Connectivity AMP Connectors

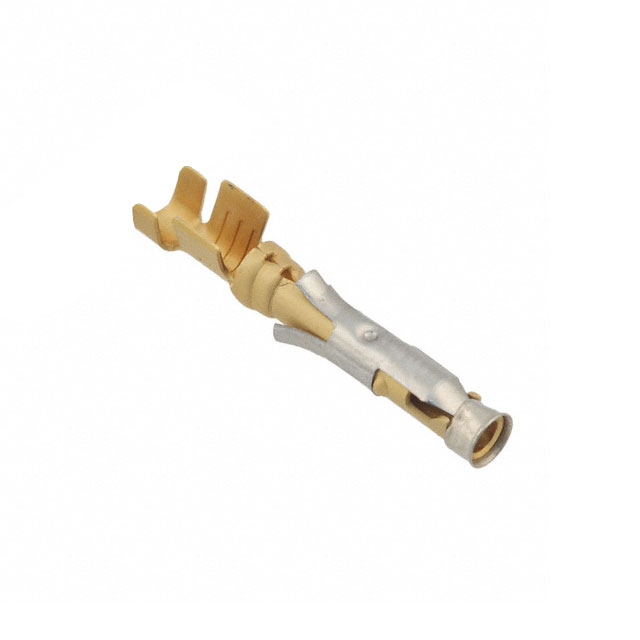

CIRCULAR CONNECTOR CONTACT, MULTIMATE III+ SERIES, SOCKET, CRIMP, 14 AWG, 18 AWG
1-66358-0
ActiveTE Connectivity AMP Connectors
CIRCULAR CONNECTOR CONTACT, MULTIMATE III+ SERIES, SOCKET, CRIMP, 14 AWG, 18 AWG
Description
General part information
AMP Type III+ Series
Socket Contact, Gold (Au), Spring Contact Retention, Size 16 Contact Size, Discrete Wire, 18 – 14 AWG, .8 – 2 mm² Wire, Crimp, Brass, AMP Type III+
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-66358-0 |
|---|---|
| Contact Finish | PdNi +Gold, Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
