6450123-3
ActiveTE Connectivity AMP Connectors

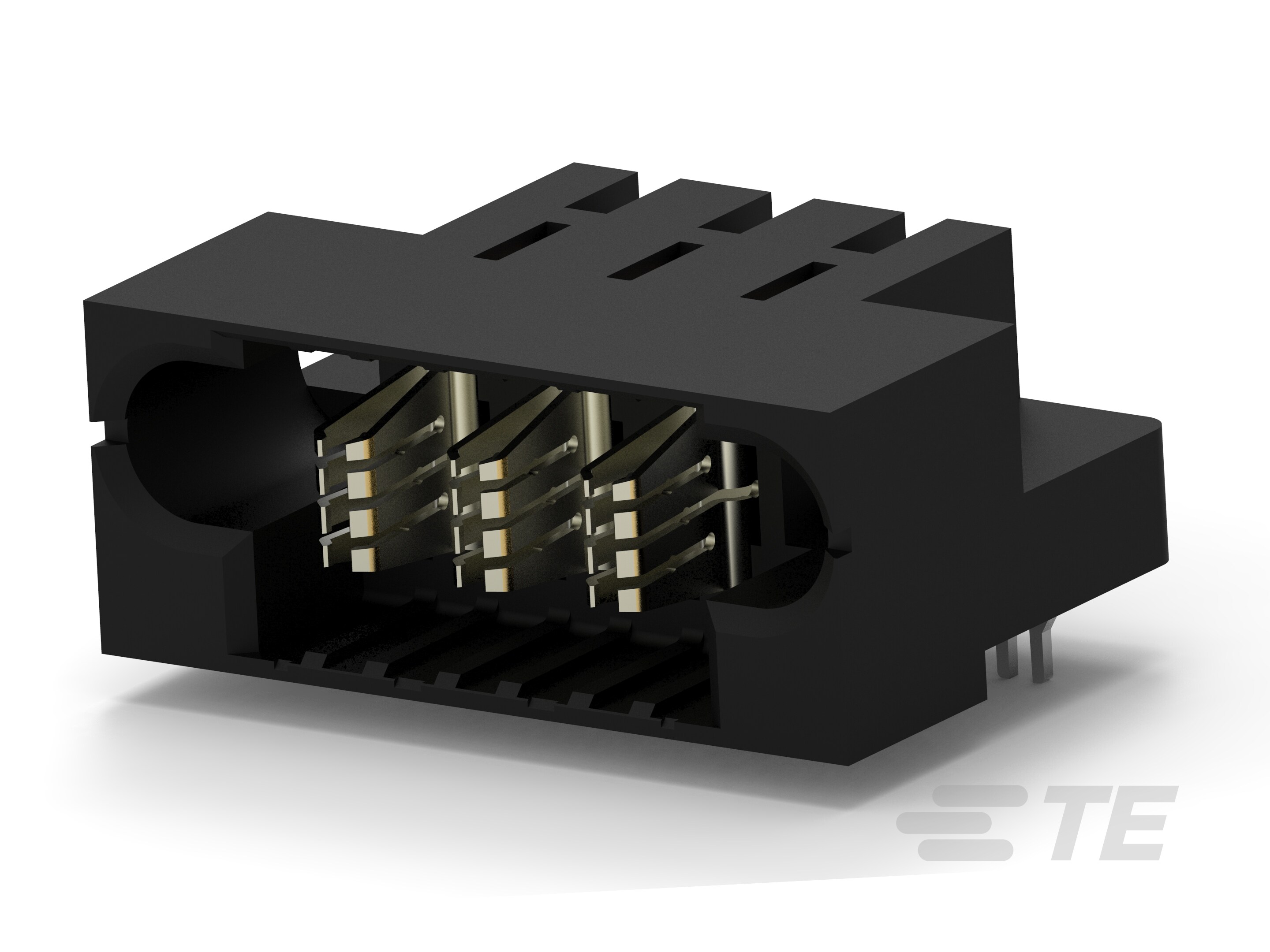

CONN HEADER MULTI-BEAM 3POS PCB
6450123-3
ActiveTE Connectivity AMP Connectors
CONN HEADER MULTI-BEAM 3POS PCB
Description
General part information
6450123-3
PCB Mount Header, Right Angle, Board-to-Board, 3 Position, 2.54 mm / 7.62 mm [.1 in / .3 in] Centerline, Fully Shrouded, Gold (Au)
Technical Specifications
Parameters and characteristics for this part
| Specification | 6450123-3 |
|---|---|
| Connector Style | Multi-Beam |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Mating Guide, Board Lock |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Power Contacts (Typical) | 3 |
| Termination | Solder |
