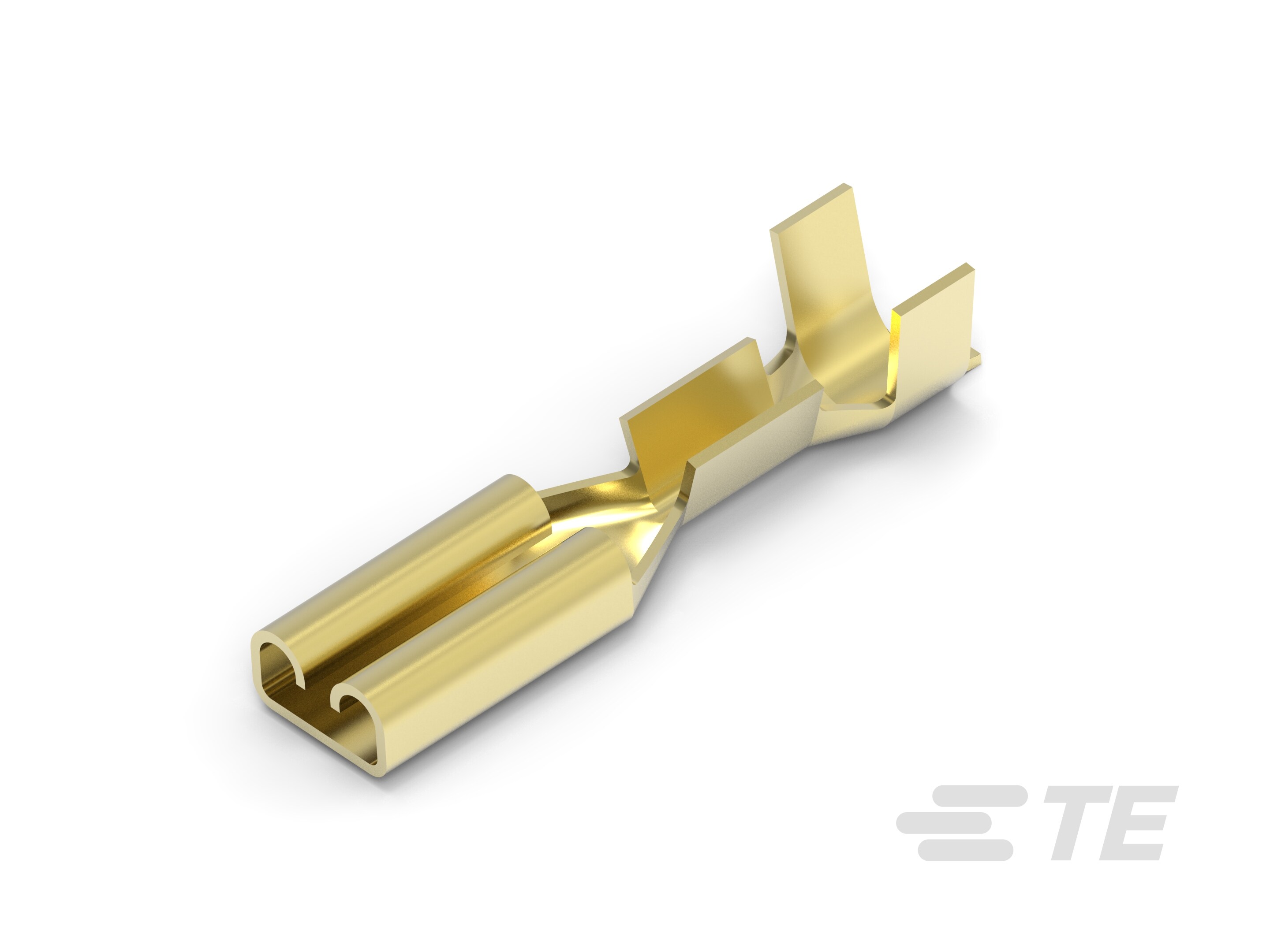

110 MINI FASTON,REC.,24-20 AWG,BR-150545-1

150545-1

Active
TE Connectivity AMP Connectors

.110 MINI FASTON ROHS COMPLIANT: YES

Find alt
110 MINI FASTON,REC.,24-20 AWG,BR-150545-1

150545-1

Active
TE Connectivity AMP Connectors

.110 MINI FASTON ROHS COMPLIANT: YES

Find alt

Description

General part information

FASTON 110 Series

Quick Disconnect Receptacle, 24 – 20 AWG, .2 – .51 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Unplated Plating, Strip/Reel, FASTON 110

Technical Specifications

Parameters and characteristics for this part

Specification150545-1
Contact MaterialBrass
GenderFemale
InsulationNon-Insulated
Length - Overall0.602 in
Mounting TypeFree Hanging (In-Line)
Tab Length0.25 in
Tab Thickness0.032 in
Tab Width0.11 in
Terminal TypeStandard
TerminationCrimp
Wire Gauge (AWG) (Max)24 AWG
Wire Gauge (AWG) (Min)19.5 AWG
