TC-402-4310F-BH-LP
ActivePasternack
4.3-10 FEMALE BULKHEAD MOUNT LOW
TC-402-4310F-BH-LP
ActivePasternack
4.3-10 FEMALE BULKHEAD MOUNT LOW
Description
General part information
TC-402-4310F-BH-LP

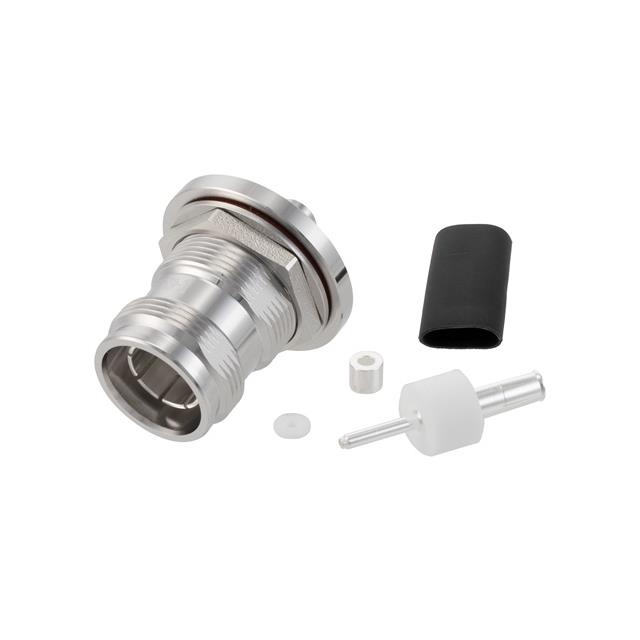

4.3/10 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TC-402-4310F-BH-LP |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | TFT-402LF, RG-402 |
| Cable Group Diameter (Semi Rigid) | 0.141 in |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Silver |
| Connector Style | 4.3/10 |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.24 dB |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 2.5 kV |
