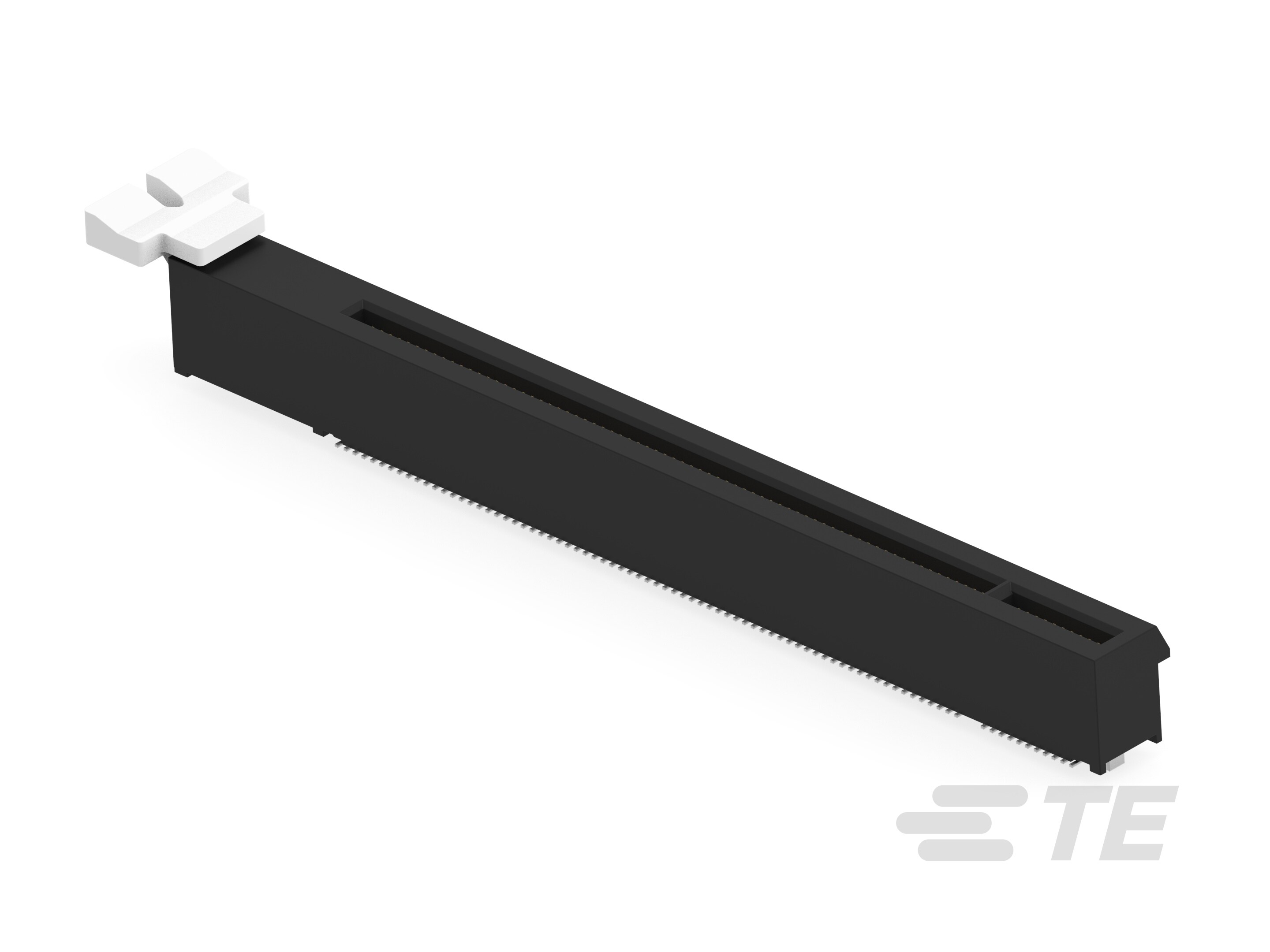

PCIE G5 CONN, 164P, ASSY, SMT,30u,LATCH-5-2371438-4

5-2371438-4

Active
TE Connectivity AMP Connectors

PCIE G5 CONN, 164P, ASSY, SMT,30U,LATCH

Find alt
PCIE G5 CONN, 164P, ASSY, SMT,30u,LATCH-5-2371438-4

5-2371438-4

Active
TE Connectivity AMP Connectors

PCIE G5 CONN, 164P, ASSY, SMT,30U,LATCH

Find alt

Description

General part information

5-2371438-4

Board-to-Board, 164 Position, 1 mm [.04 in] Centerline, Vertical, Black, Ejector, 15.2 mm [.598 in] Height, PCI & PCI Express Connectors

Technical Specifications

Parameters and characteristics for this part

Specification5-2371438-4
Card Thickness0.062 in
Card TypePCI Express™
ColorBlack
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialCopper Alloy
Contact TypeCantilever
FeaturesLocking Ramp, Board Guide, Solder Retention
GenderFemale
Mounting TypeSurface Mount
Number of Bay71
Number of Positions11, 164
Number of Rows2
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pitch0.039 in
Read OutDual
TerminationSolder
