C-3961D

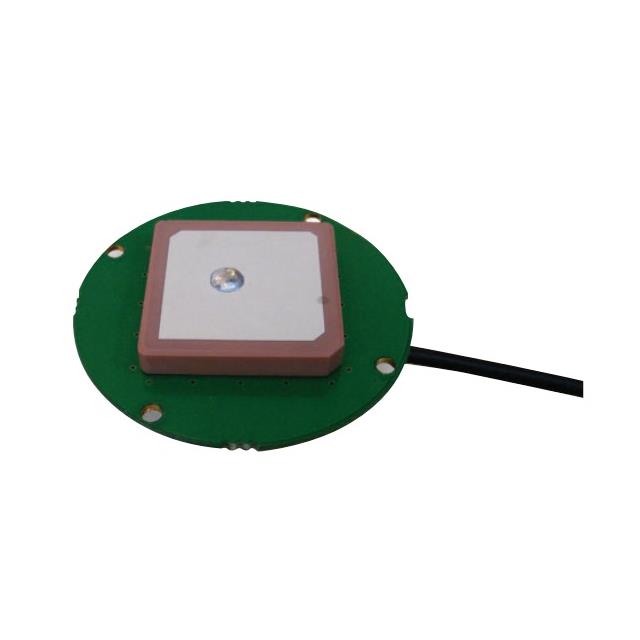

1.575GHz GNSS, GPS Ceramic Patch RF Antenna 1.417GHz ~ 1.732GHz 30dB MCX
Technical Specifications
Parameters and characteristics for this part
| Specification | C-3961D |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GNSS, GPS |
| Features | 152.4mm, Cable |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.732 GHz |
| Frequency Range (Min) | 1.417 GHz |
| Gain | 30 dB |
| Height (Max) | 0.315 in |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | MCX |
| VSWR | 1.5 |
