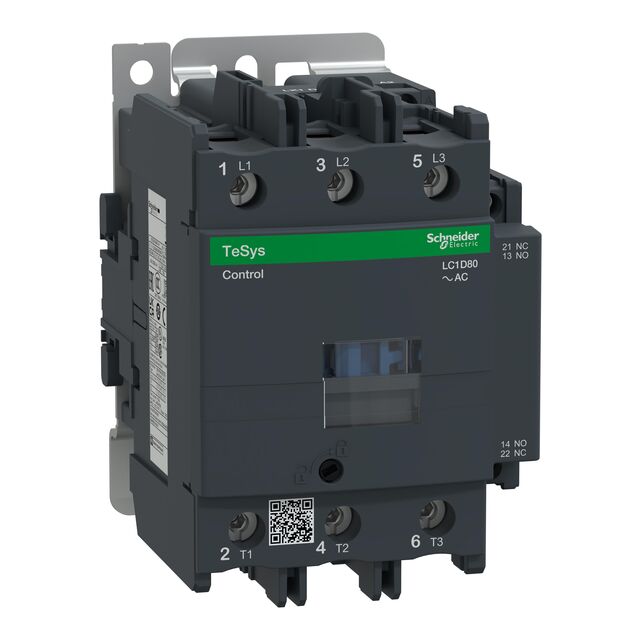

LC1D80M5
ActiveSCHNEIDER ELECTRIC
CONTACTOR TESYS DECA 80A 3P 220V
LC1D80M5
ActiveSCHNEIDER ELECTRIC
CONTACTOR TESYS DECA 80A 3P 220V
Description
General part information
LC1D80M5
CONTACTOR TESYS DECA 80A 3P 220V
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D80M5 |
|---|---|
| Coil Voltage | 220 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 80 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 187 VAC |
| Must Release Voltage | 66 VAC |
| Pin Count | 3 pins |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
