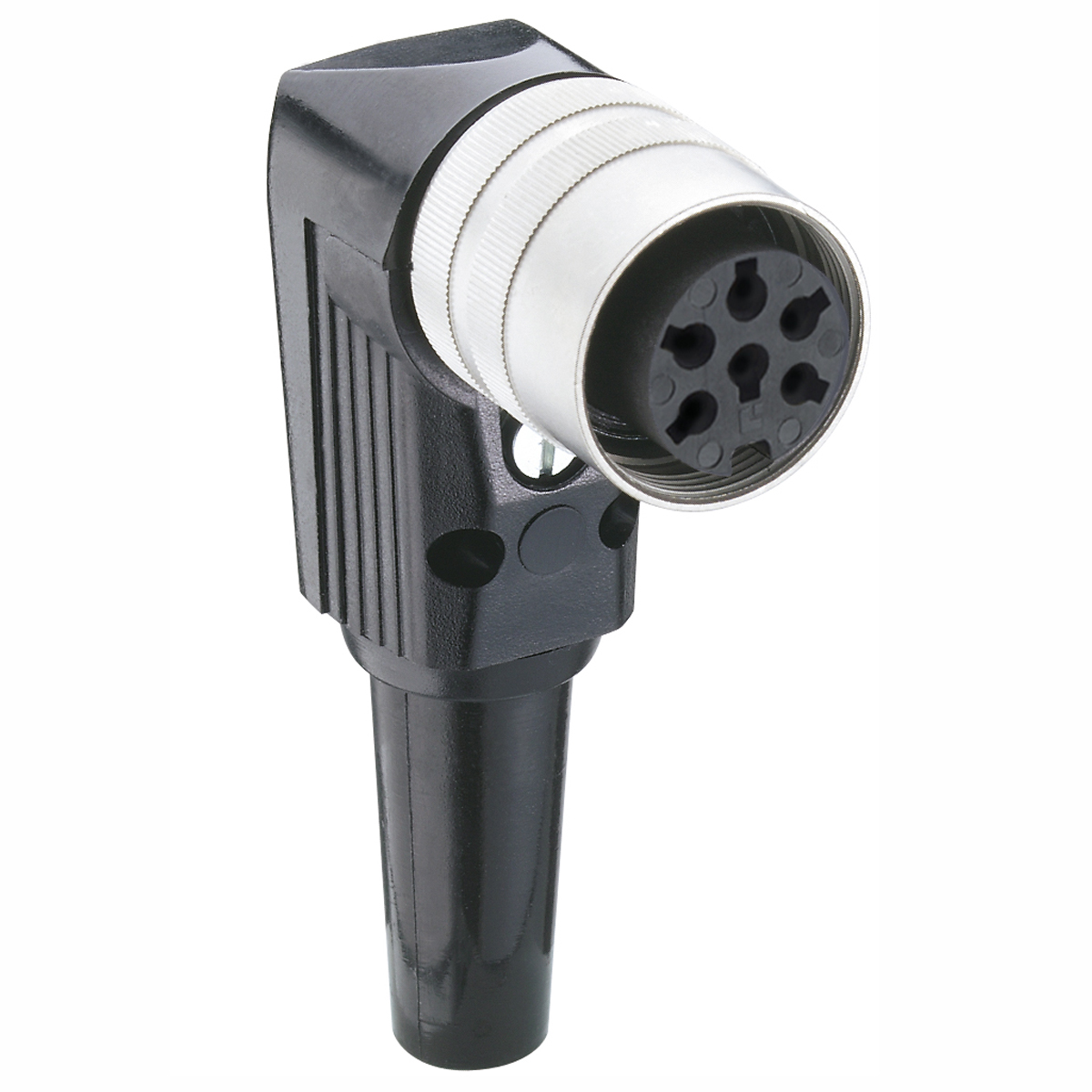

WKV 70 C
ActiveLumberg Inc
M16 IP40 SOCKET ANGULAR CRIMP
WKV 70 C
ActiveLumberg Inc
M16 IP40 SOCKET ANGULAR CRIMP
Description
General part information
WKV 70 C
7 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | WKV 70 C |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Current Rating | 5 A |
| Fastening Type | Threaded |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Plastic |
| Shell Finish | Nickel |
| Shell Size - Insert | M16 |
| Termination | Crimp |
