CP454375
ActiveSame Sky (Formerly CUI Devices)
PELTIER, 40 X 40 X 3.75, 4.5 A,
CP454375
ActiveSame Sky (Formerly CUI Devices)
PELTIER, 40 X 40 X 3.75, 4.5 A,
Description
General part information
CP454375

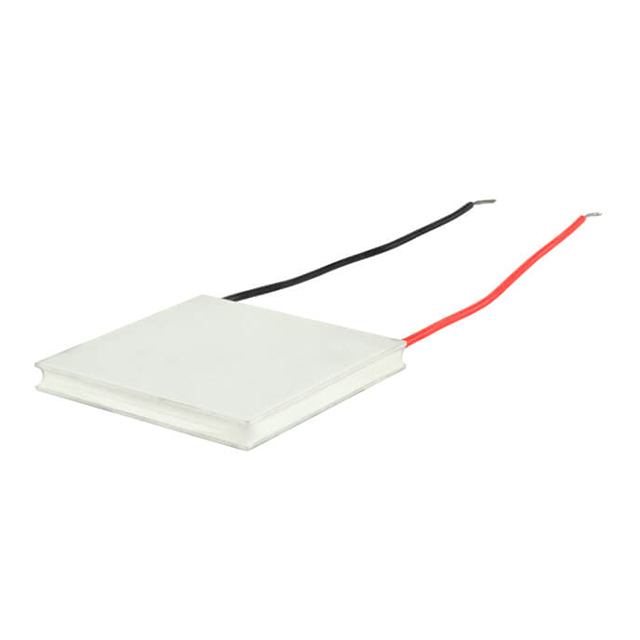

Peltier Module 50.7W @ 27°C 4.5 A
Technical Specifications
Parameters and characteristics for this part
| Specification | CP454375 |
|---|---|
| Current - Max | 4.5 A |
| Delta Tmax | 70 °C |
| Features | Silicone RTV, Lead Wires, Sealed |
| Height | 3.75 mm |
| Maximum Power Dissipation (Qmax) | 50.7 W |
| Number of Stages | 1 |
| Resistance | 3.54 Ohms |
| Size / Dimension Length | 40 mm |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 40 mm |
| Voltage - Max | 19.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
