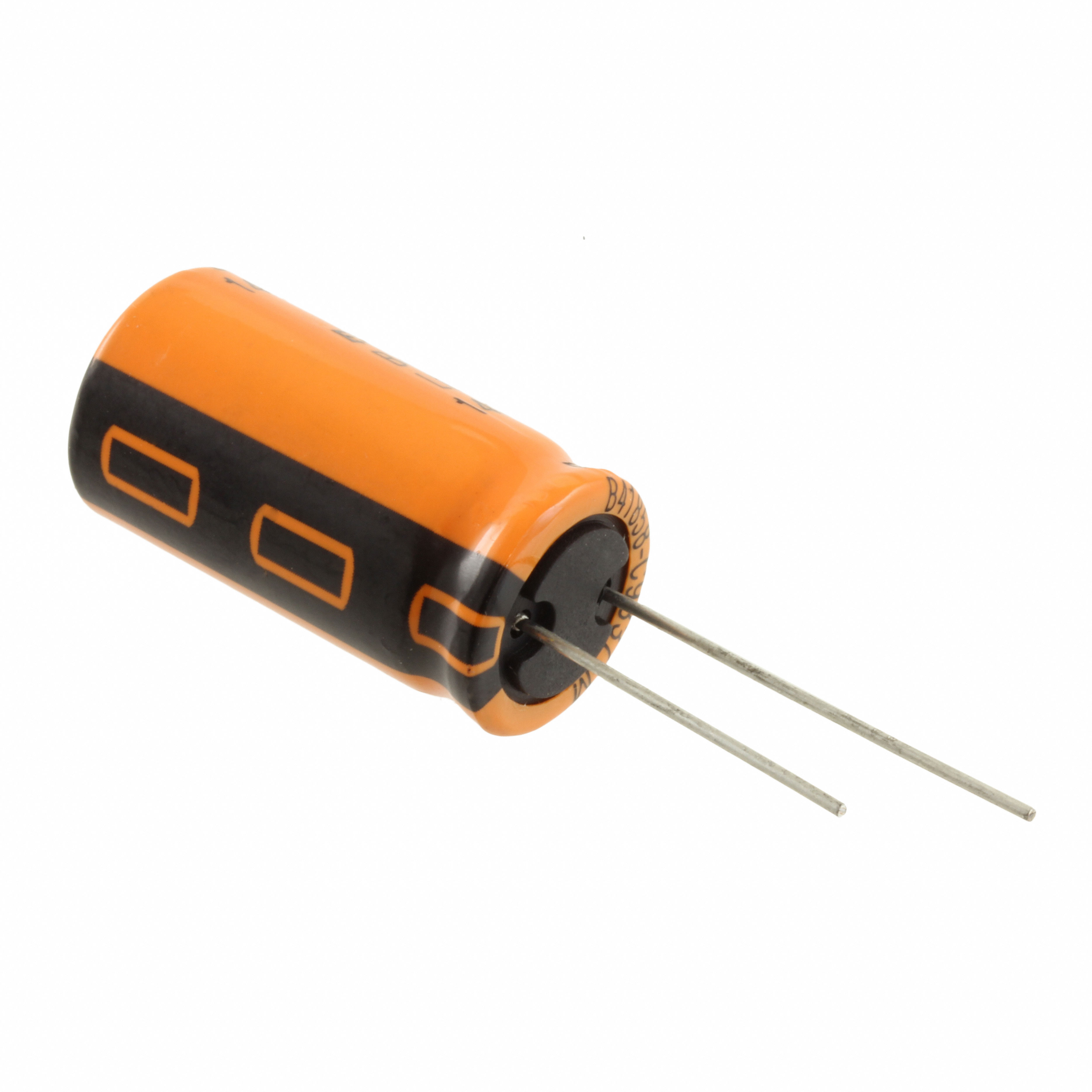

Specification	B41858C6188M000

Applications	Automotive
Capacitance	1800 µF
ESR (Equivalent Series Resistance)	30 mOhm
Height - Seated (Max)	1.319 in
Impedance	28 mOhms
Lead Spacing	0.295 in
Lifetime	5000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	2.989 A
Size / Dimension Diameter	0.709 in
Tolerance	20 %
Voltage - Rated	50 V
