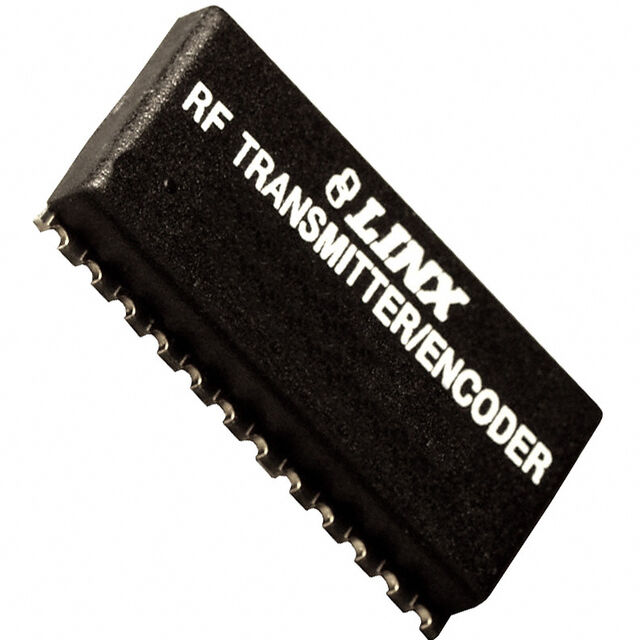

TXE-433-KH2
ObsoleteTE Connectivity AMP Connectors
RF TX IC ASK 433.92MHZ 24SMD MOD
TXE-433-KH2
ObsoleteTE Connectivity AMP Connectors
RF TX IC ASK 433.92MHZ 24SMD MOD
Description
General part information
TXE-433-KH2
RF Transmitter ASK, OOK 433.92MHz -4dBm ~ 4dBm PCB, Surface Mount Antenna 24-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | TXE-433-KH2 |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Applications | Security Alarms, RKE, Garage Openers |
| Current - Transmitting | 1.5 mA |
| Data Interface | PCB, Surface Mount |
| Features | Built-in Remote Control Encoder |
| Frequency | 433.92 MHz |
| Modulation or Protocol | ASK, OOK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 24-SMD Module |
| Package Name | 24-SMD |
| Power - Output (Maximum) | 4 dBm |
| Power - Output (Minimum) | -4 dBm |
| Voltage - Supply (Maximum) | 5.2 V |
| Voltage - Supply (Minimum) | 2.7 V |
