Description
General part information
33-2710-07-0000

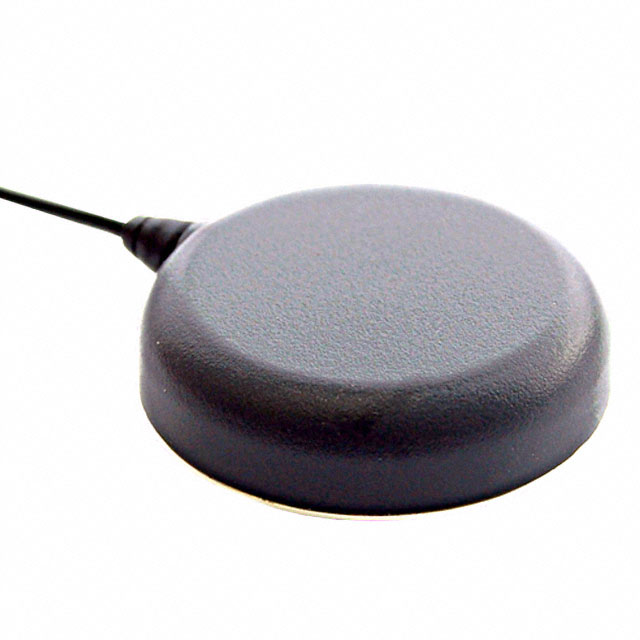

RF ANTENNA Beidou, Galileo, GLONASS, GPS Dome SMA Female Magnetic, Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 33-2710-07-0000 |
|---|---|
| Antenna Type | Dome |
| Applications | Galileo, GLONASS, BEIDOU, GPS |
| Features | LNA, Filter |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz, 1.561GHz |
| Frequency (Center/Band) - 1 | 1.561 GHz |
| Frequency (Center/Band) - 2 | 1.575 GHz |
| Frequency (Center/Band) - 3 | 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.606 GHz |
| Frequency Range (Min) | 1.557 GHz |
| Gain | 4.75 dBic |
| Height (Max) | 0.594 in |
| Ingress Protection | IP67 |
| Mounting Type | Chassis Mount, Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination Type | SMA Female |
| VSWR | 1.5 |
