20-101-0961
ObsoleteDigi International
IC MOD RABBIT 3000 22.1MHZ 256KB
20-101-0961
ObsoleteDigi International
IC MOD RABBIT 3000 22.1MHZ 256KB
Description
General part information
20-101-0961

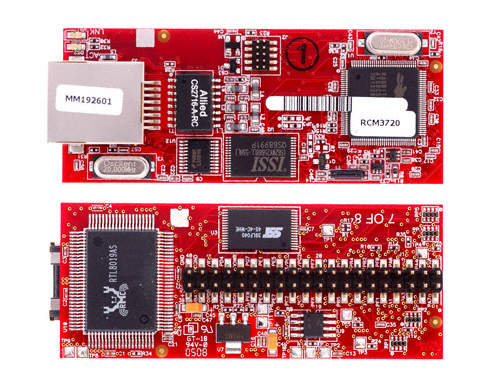

RabbitCore® Embedded Module Rabbit 3000 22.1MHz 256KB 512KB (Internal), 1MB (External)
Technical Specifications
Parameters and characteristics for this part
| Specification | 20-101-0961 |
|---|---|
| Connector Pins per Row | 20 |
| Connector Rows | 2 |
| Connector Type | IDC Header, IDC Header 2x20 |
| Core Processor | Rabbit 3000 |
| Flash Size (External) | 1 MB |
| Flash Size (Internal) | 512 KB |
| Module/Board Type | MPU Core |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| RAM Size | 256 KB |
| Size / Dimension Length | 1.2 in |
| Size / Dimension Width | 2.95 in |
| Speed | 22.1 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
