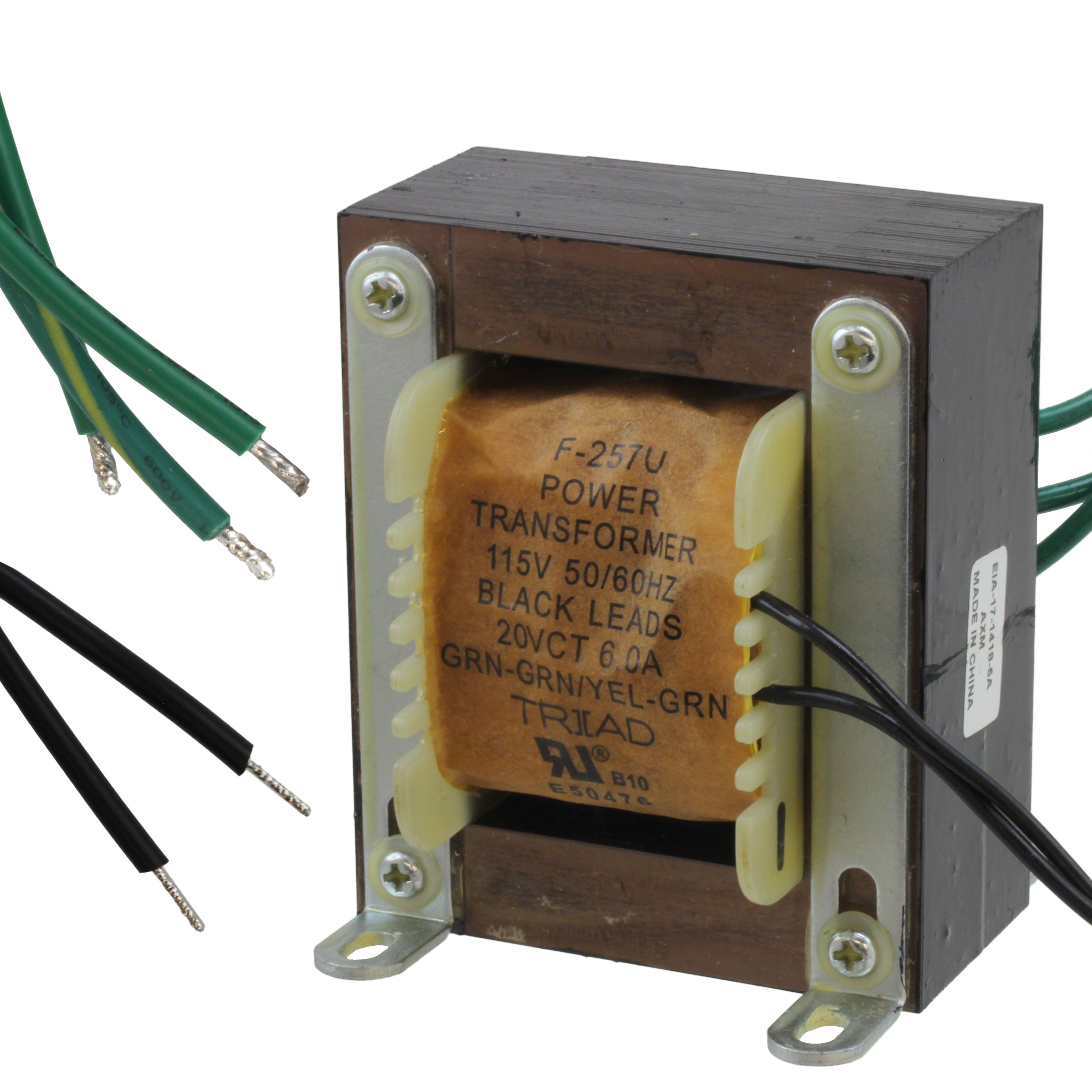

F-257U
ActiveTriad Magnetics
PWR XFMR LAMINATED 120VA CHAS MT
F-257U
ActiveTriad Magnetics
PWR XFMR LAMINATED 120VA CHAS MT
Description
General part information
F-257U
PWR XFMR LAMINATED 120VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | F-257U |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 6 A |
| Height - Seated (Max) | 3.75 in |
| Mounting Type | Chassis Mount |
| Power - Max | 120 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 85.73 mm |
| Size / Dimension Width | 85.73 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 20 V |
| Weight | 5.7 lbs |
