2214593-2
ActiveTE Connectivity AMP Connectors
CONN ZQSFP+ RCP 152 POS 2.4MM PRESS FIT RA THRU-HOLE 152 TERMINAL 4 PORT BOX/TRAY
2214593-2
ActiveTE Connectivity AMP Connectors
CONN ZQSFP+ RCP 152 POS 2.4MM PRESS FIT RA THRU-HOLE 152 TERMINAL 4 PORT BOX/TRAY
Description
General part information
2214593-2

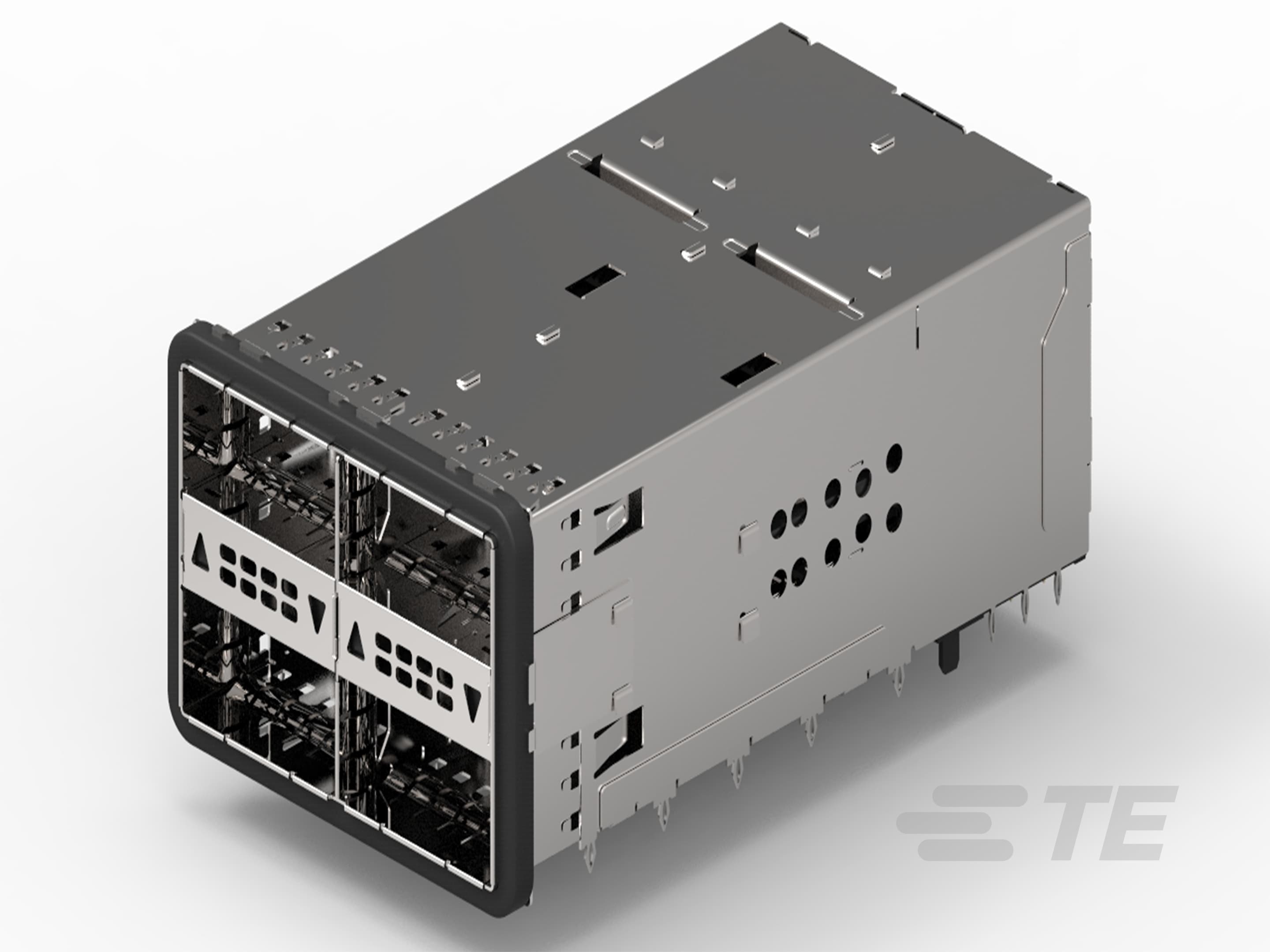

zQSFP+, Cage Assembly with Integrated Connector, .8mm [.032in] Centerline, Sealable, Signal, Operating Temperature Range -40 – 85 °C [-40 – 185 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2214593-2 |
|---|---|
| Connector Pin Configuration (Columns) | 2 pins |
| Connector Pin Configuration (Rows) | 2 pins |
| Connector Style | Receptacle with Cage, Ganged |
| Connector Type | ZQSFP+ |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Light Pipe, EMI Shielded |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Columns) | 38 |
| Number of Positions (Rows) | 4 |
| Number of Positions (Total) | 152 |
| Termination | Press-Fit |
