M1CXK-1640K

Active

IDC CABLE - MKC16K/MC16F/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

M1CXK-1640K

Active

IDC CABLE - MKC16K/MC16F/X

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.16
		10	$ 10.89
		25	$ 9.84
		50	$ 9.13
		100	$ 8.49
		250	$ 7.74
		500	$ 7.23
		1000	$ 6.77

Description

General part information

M1CXK Series

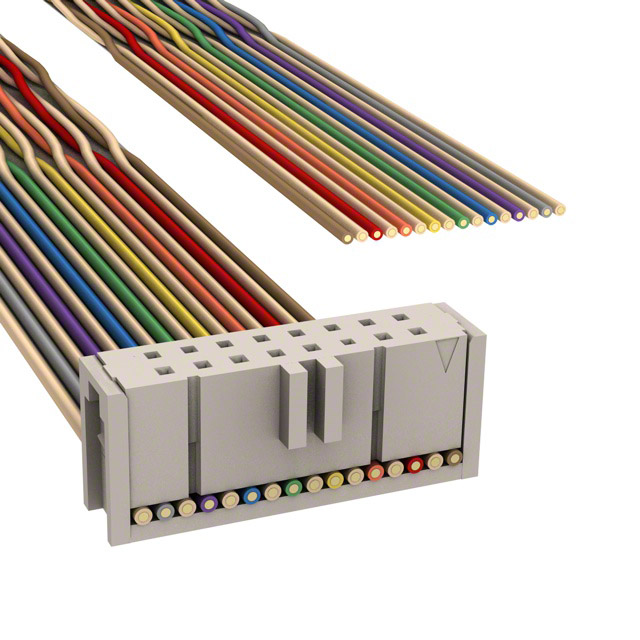

16 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

1700 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1CXK-1640K	M1CXK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length [x]	1.02 m	1.02 - 914.4 mm
Length [x]	3.34 ft	3 - 3.34 ft
Number of Positions	16	16
Number of Positions	-	10 - 50
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1CXK Series

IDC CABLE - MKC14K/MC14G/X

Part	Contact Finish	Number of Rows	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Features	Cable Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Length [x]	Length [x]	Shielding	Color	Number of Positions
3M M1CXK-1436J	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	14	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded
3M M1CXK-2640K	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	26	0.76 Ám	30 Áin	Socket to Cable	3.34 ft	1.02 m	Unshielded	Multiple, Twisted Pair (Flat)
3M M1CXK-1636J	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC		0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded		16
3M M1CXK-2636J	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	26	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded
3M M1CXK-2040K	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	20	0.76 Ám	30 Áin	Socket to Cable	3.34 ft	1.02 m	Unshielded	Multiple, Twisted Pair (Flat)
3M M1CXK-2436R	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	24	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded	Multiple, Ribbon
3M M1CXK-1440K	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	14	0.76 Ám	30 Áin	Socket to Cable	3.34 ft	1.02 m	Unshielded	Multiple, Twisted Pair (Flat)
3M M1CXK-4040K	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	40	0.76 Ám	30 Áin	Socket to Cable	3.34 ft	1.02 m	Unshielded	Multiple, Twisted Pair (Flat)
3M M1CXK-1040K	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	10	0.76 Ám	30 Áin	Socket to Cable	3.34 ft	1.02 m	Unshielded	Multiple, Twisted Pair (Flat)
3M M1CXK-5036R	Gold	2	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key	IDC	50	0.76 Ám	30 Áin	Socket to Cable	3 ft	914.4 mm	Unshielded	Multiple, Ribbon
