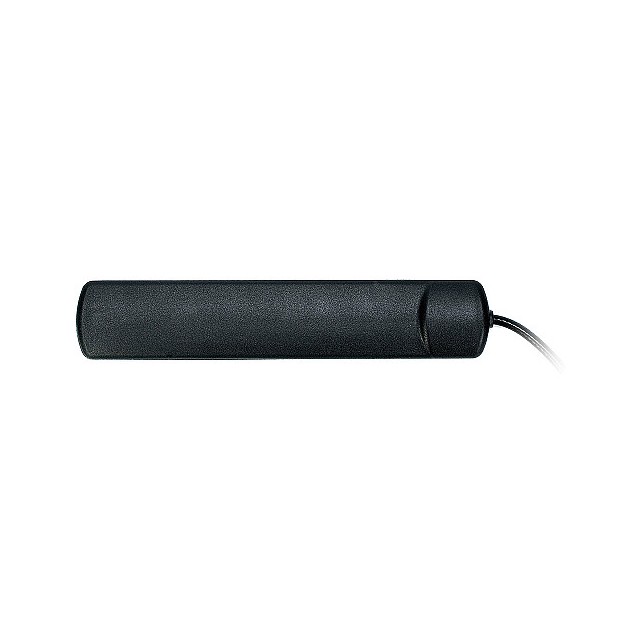

Specification	2J5024P

Antenna Type	Flat Bar
Applications	LTE
Features	Cable, 3m
Frequency (Center/Band)	1.94GHz, 829MHz, 2.6GHz
Frequency (Center/Band) - 1	829 MHz
Frequency (Center/Band) - 2	1.94 GHz
Frequency (Center/Band) - 3	2.6 GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	960 MHz
Frequency Range (Band 1) Minimum	698 MHz
Frequency Range (Band 2) Maximum	2.17 GHz
Frequency Range (Band 2) Minimum	1.71 GHz
Frequency Range (Band 3) Maximum	2.7 GHz
Frequency Range (Band 3) Minimum	2.5 GHz
Height (Max)	0.264 in
Mounting Type	Adhesive
Number of Bands	3
Power - Max	25 W
RF Family/Standard	Cellular
Termination Type	SMA Male
VSWR	1.3, 1.4
VSWR Maximum	1.4
VSWR Minimum	1.3
