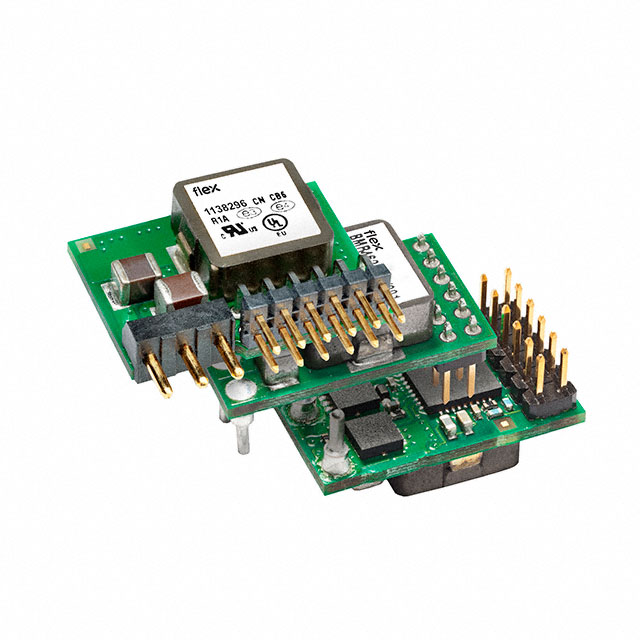

BMR4622002/001

Obsolete

Flex Power Modules

DC DC CONVERTER 0.6-5V 60W

Search across all available documentation for this part.

Obsolete

Flex Power Modules

DC DC CONVERTER 0.6-5V 60W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 5V 12A 4.5V - 14V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BMR4622002/001	BMR462 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	12 A	12 A
Efficiency	95.7 %	95.7 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	15-SIP Module	15-DIP Module, 15-SIP Module, 15-SMD Module
Power (Watts)	60 W	60 W
Size / Dimension	-	12.7 mm
Size / Dimension	-	7.2 mm
Size / Dimension [x]	20.8 mm	20.8 - 21 mm
Size / Dimension [x]	0.82 "	0.82 - 0.83 "
Size / Dimension [y]	7 mm	7 - 12.7 mm
Size / Dimension [y]	0.28 in	0.28 - 0.5 in
Size / Dimension [z]	15.6 mm	8.2 - 15.6 mm
Size / Dimension [z]	0.61 "	0.28 - 0.61 "
Standard Number	62368-1	62368-1
Type	Non-Isolated PoL Module, Digital	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	4.5 V	4.5 V
Voltage - Output 1 [Max]	5 V	5 V
Voltage - Output 1 [Min]	0.6 V	0.6 V

POWER MODULE/POWER SUPPLY ROHS

Part	Applications	Type	Approval Agency	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Max) [Max]	Standard Number	Mounting Type	Control Features	Power (Watts)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Features	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]
Flex Power Modules BMR4620002/001	ITE (Commercial)	Non-Isolated PoL Module, Digital	CB, CSA, IEC, TUV, UL	5 V	0.6 V	14 V	62368-1	Through Hole	Active Low, Enable	60 W	15-DIP Module	-40 °C	120 °C	4.5 V	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	95.7 %	12.7 mm	7.2 mm	0.28 "	0.5 in	0.83 "	21 mm	1	12 A
Flex Power Modules BMR4622002/001	ITE (Commercial)	Non-Isolated PoL Module, Digital	CB, CSA, IEC, TUV, UL	5 V	0.6 V	14 V	62368-1	Through Hole	Active Low, Enable	60 W	15-SIP Module	-40 °C	120 °C	4.5 V	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	95.7 %			0.61 "	0.28 in	0.82 "	20.8 mm	1	12 A	7 mm	15.6 mm
Flex Power Modules BMR4621002/001	ITE (Commercial)	Non-Isolated PoL Module, Digital	CB, CSA, IEC, TUV, UL	5 V	0.6 V	14 V	62368-1	Surface Mount	Active High, Enable	60 W	15-SMD Module	-40 °C	120 °C	4.5 V	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	95.7 %			0.32 "	0.5 in	0.83 "	21 mm	1	12 A	12.7 mm	8.2 mm
