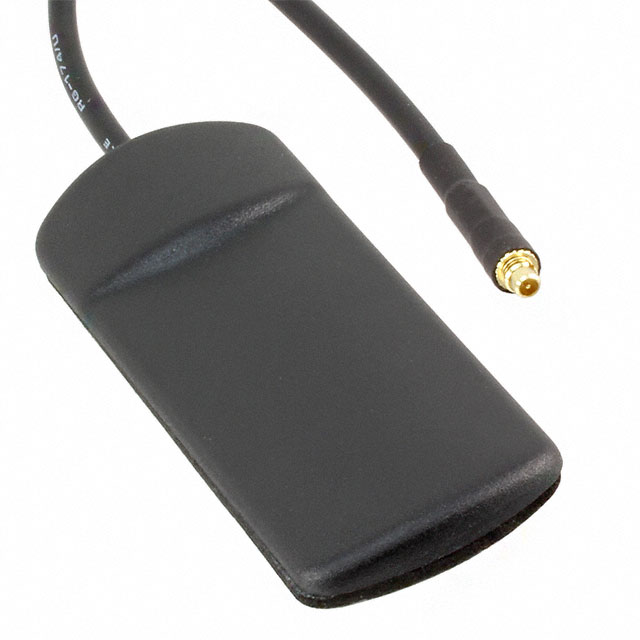

ALPHA3A/0.2M/MMCXM/S/S/26 - ALPHA3A/0.2M/MMCXM/S/S/26

ALPHA3A/0.2M/MMCXM/S/S/26

Active
Siretta Ltd

RF ANT 850MHZ/868MHZ BLADE MMCX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAdvanced Wireless CatalogDatasheet+1
ALPHA3A/0.2M/MMCXM/S/S/26 - ALPHA3A/0.2M/MMCXM/S/S/26

ALPHA3A/0.2M/MMCXM/S/S/26

Active
Siretta Ltd

RF ANT 850MHZ/868MHZ BLADE MMCX

Deep-Dive with AI

DocumentsAdvanced Wireless CatalogDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationALPHA3A/0.2M/MMCXM/S/S/26
Antenna TypeBlade
ApplicationsZigbee™, Bluetooth, GPRS, WLAN, GSM, UMTS
Frequency (Center/Band)1.9 GHz, 850 MHz, 915 MHz, 900 MHz, 2.1 GHz, 868 MHz, 1.8 GHz, 2.4 GHz
Frequency GroupWide Band
Gain3 dBi
Height (Max) [Max] [z]0.098 in
Height (Max) [Max] [z]2.5 mm
Mounting TypeAdhesive
Number of Bands8
RF Family/StandardCellular, Bluetooth, 802.15.4, WiFi
TerminationMMCX Male
VSWR2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 16.60
10$ 11.92
25$ 10.72
100$ 9.37
250$ 8.72
500$ 8.33
1000$ 8.26

Description

General part information

ALPHA3A/0.2M/MMCXM/S/S/26

RF ANTENNA Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ Blade MMCX Male Adhesive
