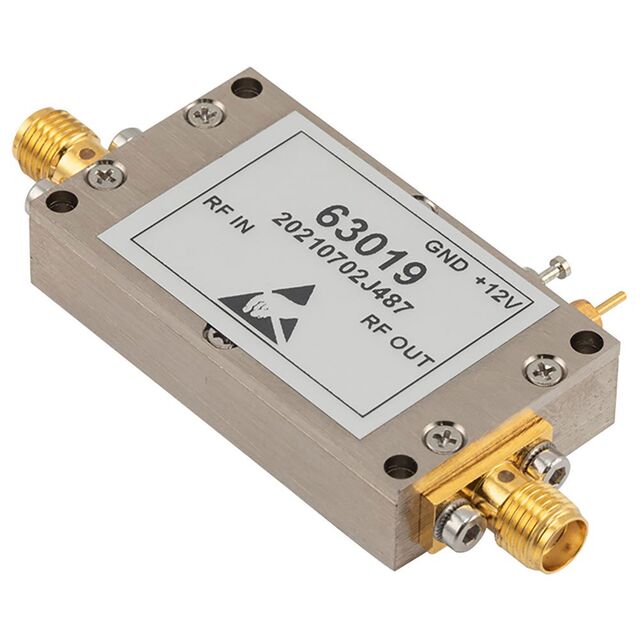

FMAM63019
ActiveFairview Microwave
LOWNOISEAMP 2000MHZ-6GHZ P1DB SM
FMAM63019
ActiveFairview Microwave
LOWNOISEAMP 2000MHZ-6GHZ P1DB SM
Description
General part information
FMAM63019
RF Amplifier IC Radar 2GHz ~ 6GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM63019 |
|---|---|
| Current - Supply | 90 mA |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 2 GHz |
| Gain | 43 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 1.2 dB |
| P1dB | 14 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 8 V |
