Description
General part information

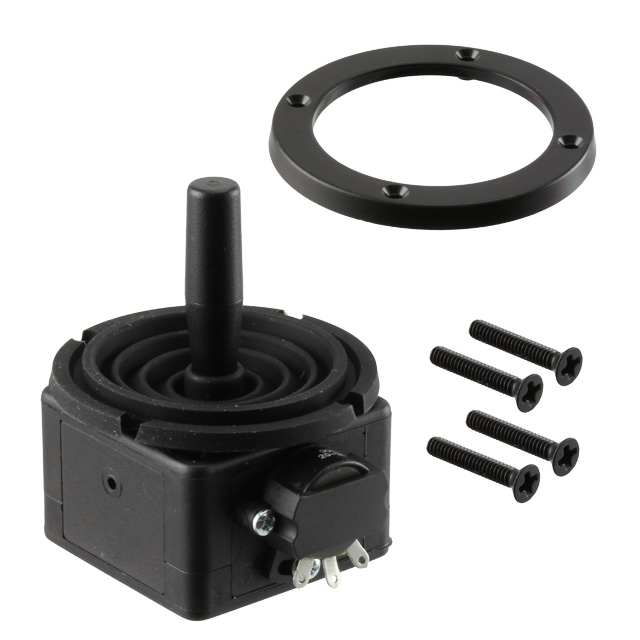

M11L061P-X
Joystick, 1 - Axis Analog (Resistive) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | M11L061P-X |
|---|---|
| Actuator Type | Joystick |
| Axis Count | 1 Axis |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 133 gf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output | Analog (Resistive) |
| Panel Cutout Diameter | 39.7 mm |
| Panel Cutout Shape | Circular |
| Resistance | 5 kOhm |
| Switch Function | 2-Way Directional |
| Termination Style | Solder Lug |
| Type | Joystick, 1 - Axis |
