1-2213753-4
ActiveTE Connectivity AMP Connectors
CONN WIRE TO BOARD SKT 5POWER POS 6.35MM SOLDER ST THRU-HOLE TUBE
1-2213753-4
ActiveTE Connectivity AMP Connectors
CONN WIRE TO BOARD SKT 5POWER POS 6.35MM SOLDER ST THRU-HOLE TUBE
Description
General part information
1-2213753-4

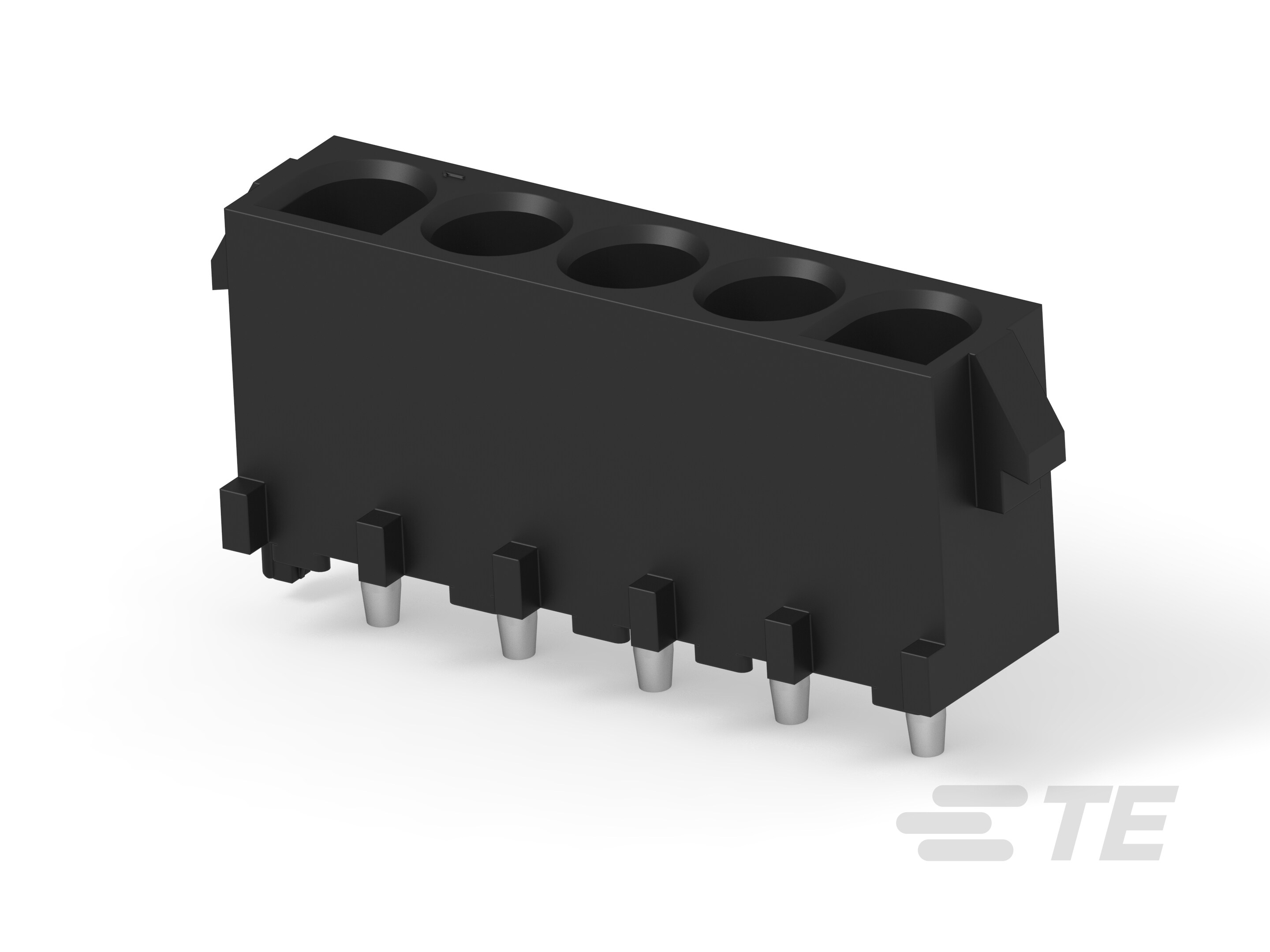

PCB Mount Header, Vertical, Wire-to-Board, 5 Position, 6.35 mm [.25 in] Centerline, Fully Shrouded, Gold (Au), Through Hole - Solder, Power, Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2213753-4 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.14 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 12 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height | 0.58 in |
| Insulation Material | Glass Filled, Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 5 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.25 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 600 V |
