7016-0131
ActiveMcGill Microwave Systems
COAX CBL SMPM TO 2.4MM 24"
7016-0131
ActiveMcGill Microwave Systems
COAX CBL SMPM TO 2.4MM 24"
Description
General part information
7016-0131

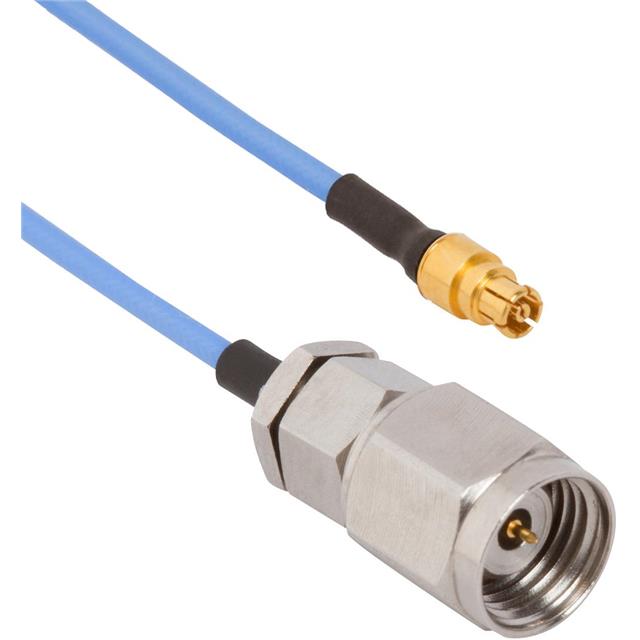

Cable Assembly Coaxial SMPM to 2.4mm 0.047" Flexible Cable 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 7016-0131 |
|---|---|
| 1st Connector | SMPM Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 2.4 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.047 " |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 0.047 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.047, 0.047 " |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 50 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMPM to 2.4mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
