Description
General part information

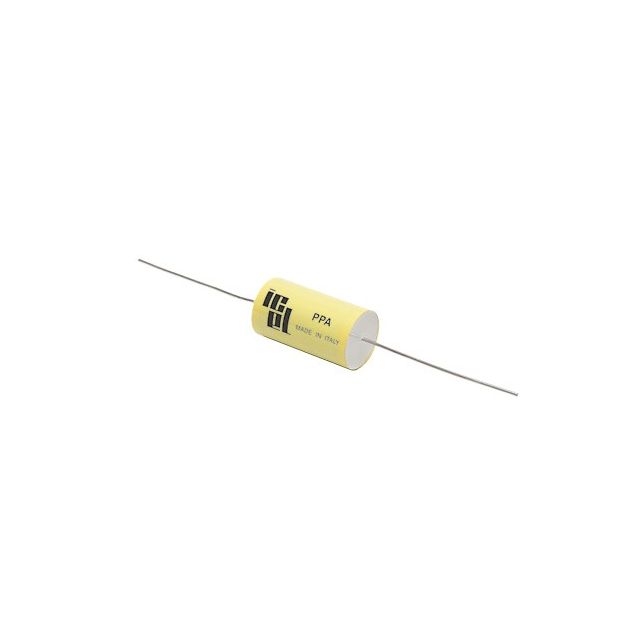

PPA2203100KJ
0.1 µF Film Capacitor 650V 2000V (2kV) Polypropylene (PP), Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | PPA2203100KJ |
|---|---|
| Applications | High Pulse, Snubber, Switching, High Frequency, DV/DT |
| Capacitance | 0.1 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 8.4 mOhm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.709 in |
| Size / Dimension Length | 1.26 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 650 VAC |
| Voltage Rating - DC | 2 kVDC |
