1-1563337-1
ActiveTE Connectivity AMP Connectors
20POS MQS REC COD A
1-1563337-1
ActiveTE Connectivity AMP Connectors
20POS MQS REC COD A
Description
General part information
1-1563337-1

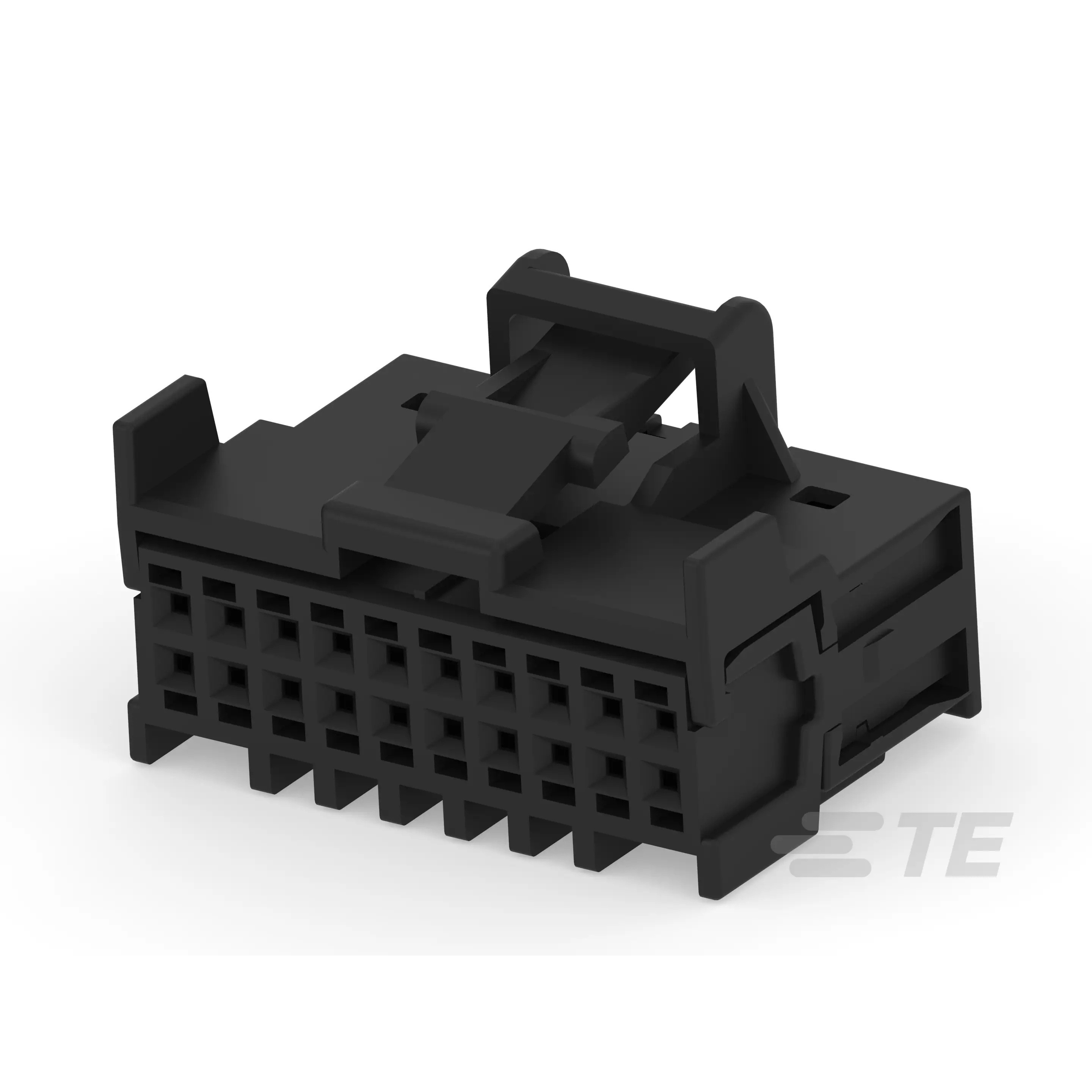

20 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.5 mm [.098 in] Centerline, Black, Wire & Cable, Signal, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1563337-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
