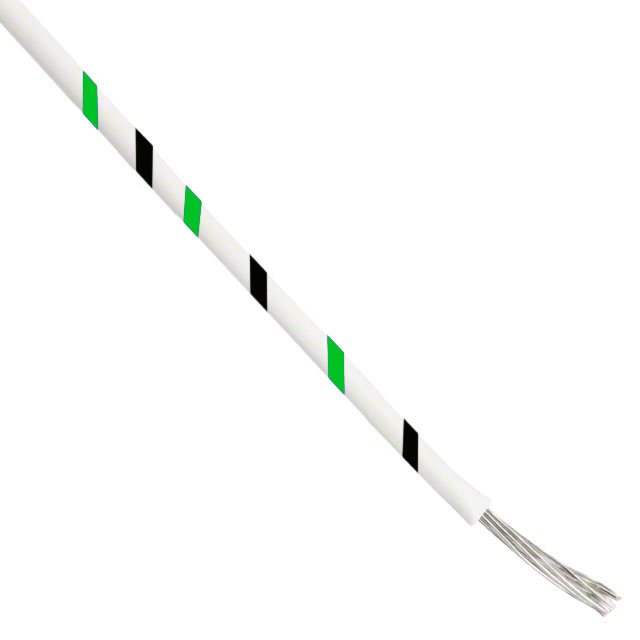

Specification	81044/12-22-905

Cable Type	Up, Hook, Dual Wall
Conductor Material	Tinned, Copper
Conductor Strand Count	19
Conductor Strand Gauge	34 AWG
Grade	Military
Jacket (Insulation) Diameter	0.047 in
Jacket (Insulation) Material	Polyvinyl Fluoride (PVF)
Jacket (Insulation) Thickness	0.003 in
Jacket Color	Black, White, Green Stripe
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-65 °C
Qualification	MIL-C-27500, MIL-W-81044
Voltage	600 V
Wire Gauge	22 AWG

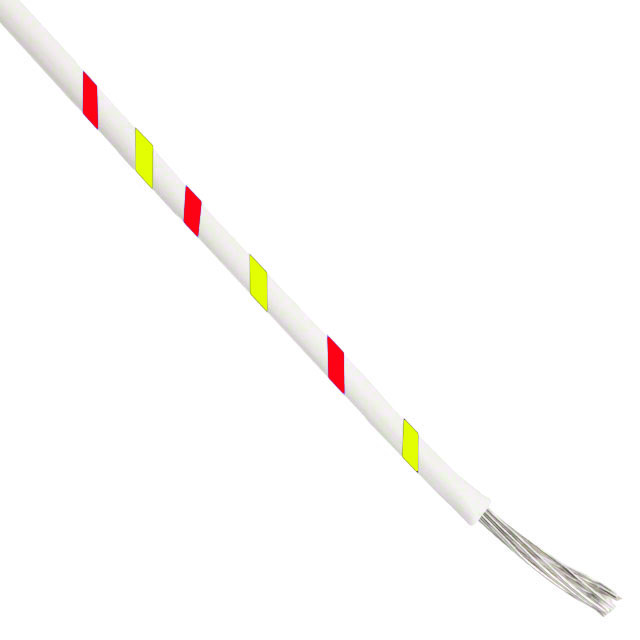

81044 Series

...

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter	Conductor Material	Jacket (Insulation) Material	Cable Type	Grade	Voltage	Wire Gauge	Qualification	Conductor Strand Gauge	Conductor Strand Count	Operating Temperature (Min)	Operating Temperature (Max)	Jacket Color	Length	Length
TE Connectivity AMP Connectors 81044/12-24-9
TE Connectivity AMP Connectors 81044/6-6-2	0.005 in	0.269 in	Copper Tinned	Irradiated Polyvinylidene Fluoride (PVDF)	Hook-Up	Military	600 V	6 AWG	MIL-C-27500 MIL-W-81044	27 AWG	133	-65 °C	150 °C	Red
TE Connectivity AMP Connectors 81044/12-24-924
TE Connectivity AMP Connectors 81044/12-14-0CS3209	0.003 in	0.089 in	Copper Tinned	Polyvinyl Fluoride (PVF)	Dual Wall Hook Up	Military	600 V	14 AWG	MIL-C-27500 MIL-W-81044	27 AWG	19	-65 °C	200 °C	Black
TE Connectivity AMP Connectors 81044/9-8-9	0.005 in	0.214 in	Copper Tinned	Polyvinylidene Fluoride (PVDF)	Dual Wall Hook Up	Military	600 V	8 AWG	MIL-C-27500 MIL-W-81044	29 AWG	133	-65 °C	150 °C	White	12 in 25 ft 50 ft 100 ft 500 ft	Enter Number of Feet in Order Quantity
TE Connectivity AMP Connectors 81044/12-24-907	0.003 in	0.04 in	Copper Tinned	Polyvinyl Fluoride (PVF)	Dual Wall Hook Up	Military	600 V	24 AWG	MIL-C-27500 MIL-W-81044	36	19	-65 °C	200 °C	Black Violet Stripe White
TE Connectivity AMP Connectors 81044/9-4-0
TE Connectivity AMP Connectors 81044/9-12-5	0.005 in	0.126 in	Copper Tinned	Irradiated Polyvinylidene Fluoride (PVDF)	Hook-Up	Military	600 V	12 AWG	MIL-C-27500 MIL-W-81044	28 AWG	37	-65 °C	150 °C	Green
TE Connectivity AMP Connectors 81044/6-22-9	0.005 in	0.069 in	Copper Tinned	Polyvinyl Fluoride (PVF)	Dual Wall Hook Up	Military	600 V	22 AWG	MIL-C-27500 MIL-W-81044	34 AWG	19	-65 °C	150 °C	White
TE Connectivity AMP Connectors 81044/12-22-926	0.003 in	0.047 in	Copper Tinned	Polyvinyl Fluoride (PVF)	Dual Wall Hook Up	Military	600 V	22 AWG	MIL-C-27500 MIL-W-81044	34 AWG	19	-65 °C	200 °C	Blue Stripe Red White
