MBXLE R/A HEADER 12S+2P-2363704-2

2363704-2

Active
TE Connectivity AMP Connectors

MBXLE R/A HEADER 12S+2P

Find alt
MBXLE R/A HEADER 12S+2P-2363704-2

2363704-2

Active
TE Connectivity AMP Connectors

MBXLE R/A HEADER 12S+2P

Find alt

Description

General part information

2363704-2

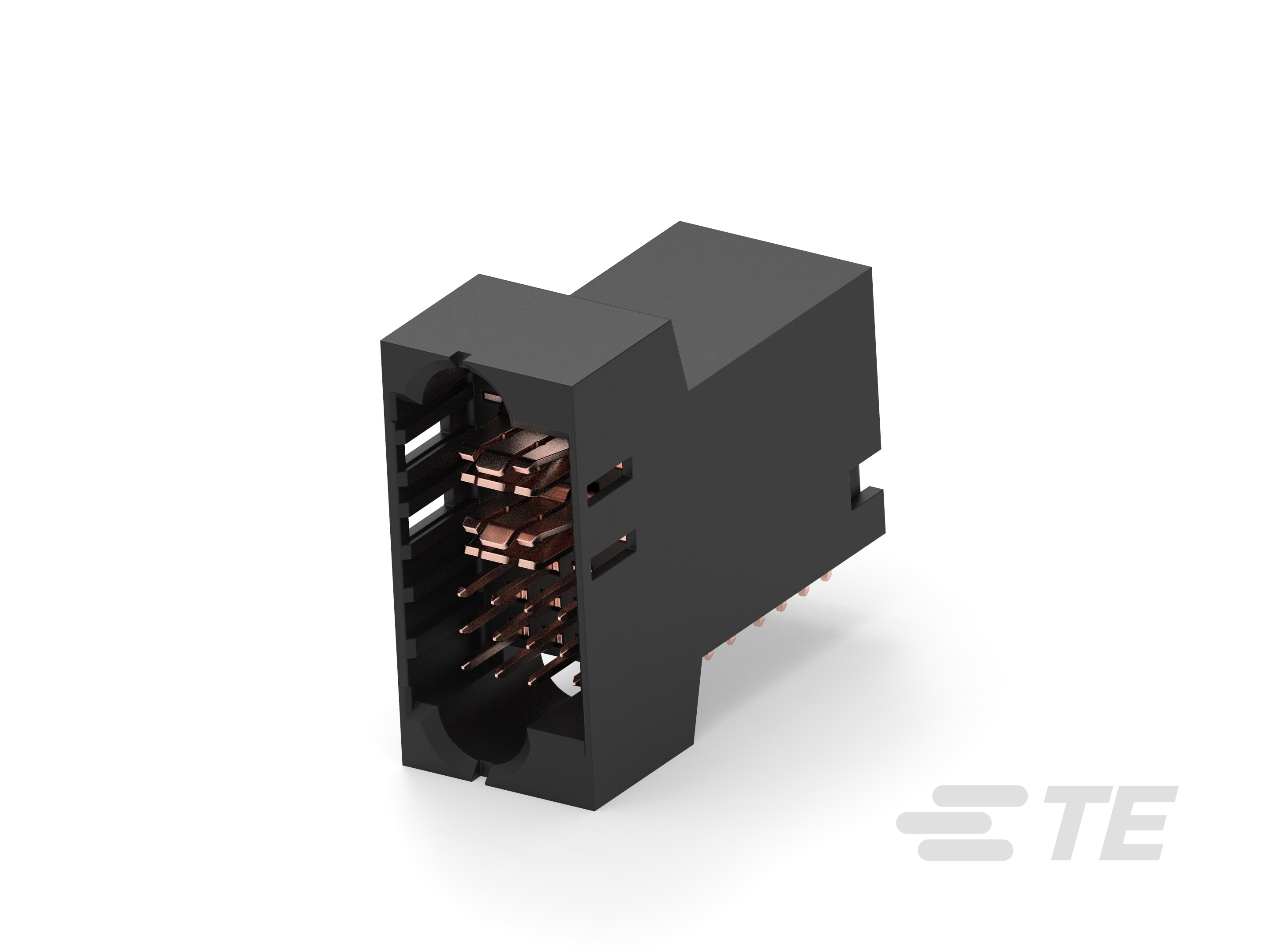

PCB Mount Header, Right Angle, Board-to-Board, 14 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Gold (Au), Through Hole - Press-Fit

Technical Specifications

Parameters and characteristics for this part

Specification2363704-2
ColorBlack
Connector StylePower
Connector TypeReceptacle, Blade Sockets, Female Sockets
Connector UsageBackplane, Orthogonal
Contact FinishGold
FeaturesMating Guide
Mounting TypeThrough Hole, Right Angle
Number of Columns5
Number of Positions14
Number of Positions LoadedAll
Number of Rows4
Pitch0.1 in
Power Contacts (Typical)2
Signal Contacts (Typical)12
TerminationPress-Fit
