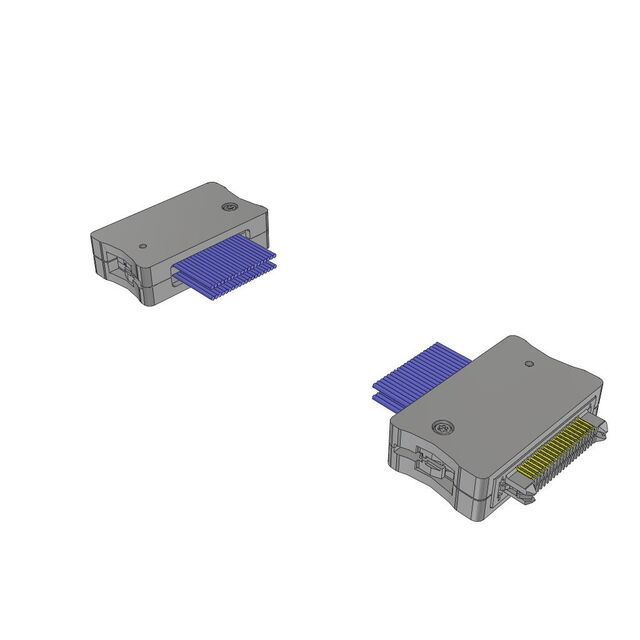

ERCD-020-18.00-TEU-TED-1-D
ActiveSamtec Inc.
CBL ASSEM HDR M-M 40POS 18"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ERCD-020-18.00-TEU-TED-1-D |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Blue |
| Connector Type | Card Edge to Card Edge, Reversed |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.016 in |
| Pitch - Cable | 0.4 mm |
| Pitch - Connector | 0.8 mm |
| Pitch - Connector | 0.031 in |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 144.37 | |
| 10 | $ 112.66 | |||
| 25 | $ 102.64 | |||
| 50 | $ 95.88 | |||
| 100 | $ 89.78 | |||
Description
General part information
ERCD-020 Series
40 Position Cable Assembly Rectangular Card Edge to Card Edge, Reversed 1.50' (457.20mm)
