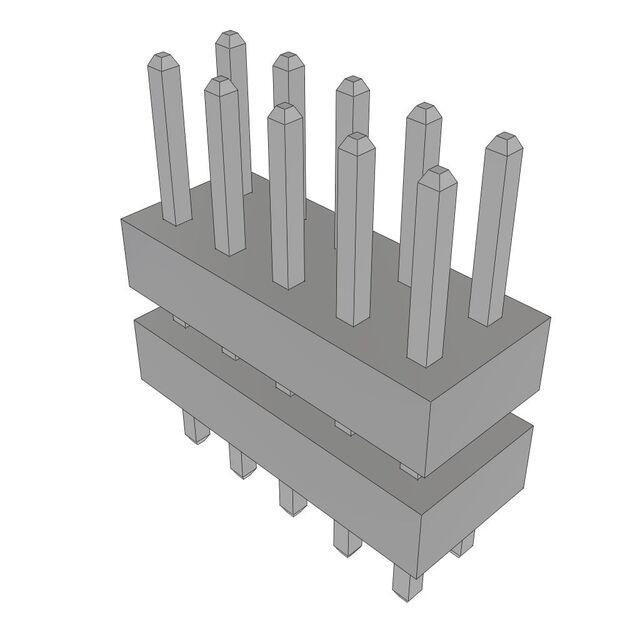

TW-05-09-T-D-200-128

Active

Samtec Inc.

CONN BRD STACK 2.00 10POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTMM Series Other Related Documents 03 TW Datasheet +1

TW-05-09-T-D-200-128

Active

Samtec Inc.

CONN BRD STACK 2.00 10POS

Deep-Dive with AI

DocumentsTMM Series Other Related Documents 03 TW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TW-05-09-T-D-200-128

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin [x]	11.582 mm
Length - Overall Pin [x]	0.456 in
Length - Post (Mating) [x]	0.128 in
Length - Post (Mating) [x]	3.251 mm
Length - Tail	0.128 in
Length - Tail	3.251 mm
Mounting Type	Through Hole
Number of Positions	10
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

TW-05-09 Series

Part	Contact Finish - Post (Mating)	Length - Tail	Length - Tail [custom]	Pitch [x]	Pitch [x]	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Rows	Length - Stack Height [z]	Length - Stack Height [z]	Color	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [x]	Length - Tail [x]	Length - Tail	Number of Positions	Row Spacing	Row Spacing	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. TW-05-09-T-S-216-140	Tin	3.556 mm	0.14 in	0.079 in	2 mm	Through Hole	0.1 in	2.54 mm	11.582 mm	0.456 in	1	5.486 mm	0.216 in	Black	Solder
Samtec Inc. TW-05-09-T-S-255-100	Tin			0.079 in	2 mm	Through Hole	0.101 in	2.565 mm	11.582 mm	0.456 in	1			Black	Solder	6.477 mm	0.255 in	0.1 "	2.54 mm
Samtec Inc. TW-05-09-G-D-230-095	Gold	2.413 mm		0.079 in	2 mm	Through Hole	0.131 in	3.327 mm	11.582 mm	0.456 in	2			Black	Solder					0.095 in	10	2 mm	0.079 in	0.51 Ám	20 Áin
Samtec Inc. TW-05-09-T-D-250-100	Tin			0.079 in	2 mm	Through Hole	0.106 in	2.692 mm	11.582 mm	0.456 in	2			Black	Solder	6.35 mm	0.25 in	0.1 "	2.54 mm		10	2 mm	0.079 in
Samtec Inc. TW-05-09-L-D-190-080	Gold			0.079 in	2 mm	Through Hole	0.186 in	4.724 mm	11.582 mm	0.456 in	2	4.826 mm	0.19 in	Black	Solder			0.08 in	2.032 mm		10	2 mm	0.079 in	0.25 Ám	10 Áin
Samtec Inc. TW-05-09-S-D-245-090	Gold			0.079 in	2 mm	Through Hole	0.121 in	3.073 mm	11.582 mm	0.456 in	2			Black	Solder	6.223 mm	0.245 in	0.09 in	2.286 mm		10	2 mm	0.079 in	0.76 µm	30 µin
Samtec Inc. TW-05-09-G-D-236-098	Gold			0.079 in	2 mm	Through Hole	0.122 in	3.099 mm	11.582 mm	0.456 in	2			Black	Solder	5.994 mm	0.236 in	0.098 in	2.489 mm		10	2 mm	0.079 in	0.51 Ám	20 Áin
Samtec Inc. TW-05-09-G-D-170-075	Gold	1.905 mm		0.079 in	2 mm	Through Hole	0.211 in	5.791 mm	11.582 mm	0.456 in	2	4.318 mm	0.17 in	Black	Solder					0.075 in	10	2 mm	0.079 in	0.51 Ám	20 Áin
Samtec Inc. TW-05-09-T-D-200-128	Tin	3.251 mm		0.079 in	2 mm	Through Hole	0.128 in	3.251 mm	11.582 mm	0.456 in	2			Black	Solder					0.128 in	10	2 mm	0.079 in
Samtec Inc. TW-05-09-L-D-250-090	Gold			0.079 in	2 mm	Through Hole	0.116 in	2.946 mm	11.582 mm	0.456 in	2			Black	Solder	6.35 mm	0.25 in	0.09 in	2.286 mm		10	2 mm	0.079 in	0.25 Ám	10 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.40

Description

General part information

TW-05-09 Series

10 Position Header Spacer Connector 0.079" (2.00mm) Tin Through Hole

Documents

Technical documentation and resources

TMM Series Other Related Documents 03

TW Datasheet

Datasheet
