Specification	XTEARY-02-0000-000000T07

Color	Blue
Current - Max	1.5 A
Current - Test	350 mA
Height - Seated (Max)	0.095 in
Luminous Flux	688 mW
Luminous Flux (Maximum)	700 mW
Luminous Flux (Minimum)	675 mW
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Package Name	1414
Size / Dimension Length	0.136 in
Size / Dimension Width	0.136 in
Temperature - Test	85 °C
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2.8 V
Wavelength	455 nm

XTEARY Series

...

Part	Size / Dimension Length	Size / Dimension Width	Package / Case	Package Name	Luminous Flux (Maximum)	Luminous Flux	Luminous Flux (Minimum)	Mounting Type	Current - Test	Current - Max	Viewing Angle	Voltage - Forward (Vf) (Typ)	Wavelength	Height - Seated (Max)	Temperature - Test	Color	Wavelength (Maximum)	Wavelength (Minimum)	Wavelength (Nominal)	Thermal Resistance of Package
CreeLED, Inc. XTEARY-02-0000-000000T03	0.136 in	0.136 in	1414 (3535 Metric)	1414	700 mW	688 mW	675 mW	Surface Mount	350 mA	1.5 A	130 °	2.8 V	460 nm	0.095 in	85 °C	Blue
CreeLED, Inc. XTEARY-00-0000-000000S05	0.136 in	0.136 in	1414 (3535 Metric)	1414	675 mW	663 mW	650 mW	Surface Mount	350 mA	1.5 A	130 °	2.8 V	458 nm	0.095 in	85 °C	Blue	460 nm	455 nm	458 nm
CreeLED, Inc. XTEARY-00-0000-000000T09	0.136 in	0.136 in	1414 (3535 Metric)	1414	700 mW	688 mW	675 mW	Surface Mount	350 mA	1.5 A	130 °	2.8 V	458 nm	0.095 in	85 °C	Blue	463 nm	453 nm	458 nm
CreeLED, Inc. XTEARY-02-0000-000000L02	0.136 in	0.136 in	1414 (3535 Metric)	SMD	525 mW	513 mW	500 mW	Surface Mount	350 mA	1.5 A	140 °	2.85 V	455 nm	0.1 in	85 °C	Blue	460 nm	450 nm	455 nm
CreeLED, Inc. XTEARY-02-0000-000000T09	0.136 in	0.136 in	1414 (3535 Metric)	1414	700 mW	688 mW	675 mW	Surface Mount	350 mA	1.5 A	130 °	2.8 V	458 nm	0.095 in	85 °C	Blue
CreeLED, Inc. XTEARY-00-0000-000000R03	0.136 in	0.136 in	1414 (3535 Metric)	1414	650 mW	638 mW	625 mW	Surface Mount	350 mA	1.5 A	130 °	2.8 V	460 nm	0.095 in	85 °C	Blue	465 nm	455 nm	460 nm

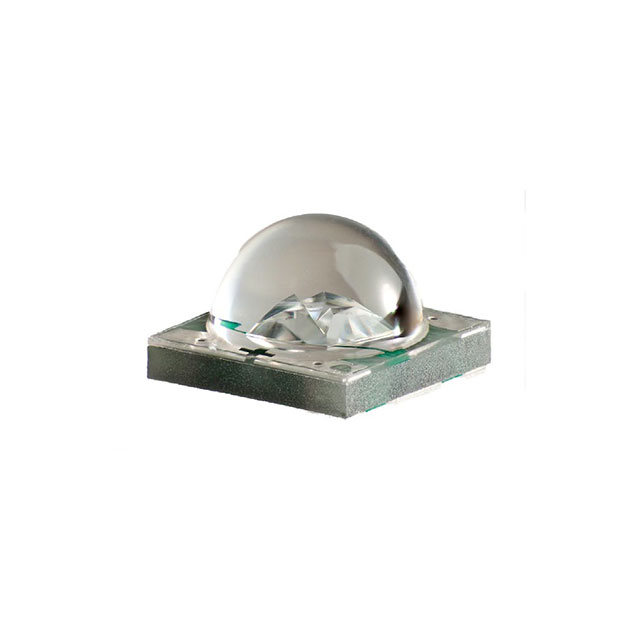

CreeLED, Inc. XTEARY-02-0000-000000K03	0.136 in	0.136 in	1414 (3535 Metric)	SMD	500 mW	488 mW	475 mW	Surface Mount	350 mA	1.5 A	140 °	2.85 V	460 nm	0.1 in	85 °C	Blue	465 nm	455 nm	460 nm	5 °C/W
CreeLED, Inc. XTEARY-00-0000-000000S08	0.136 in	0.136 in	1414 (3535 Metric)	1414	675 mW	663 mW	650 mW	Surface Mount	350 mA	1.5 A	130 °	2.8 V	461 nm	0.095 in	85 °C	Blue	463 nm	458 nm	461 nm
CreeLED, Inc. XTEARY-00-0000-000000Q06	0.136 in	0.136 in	1414 (3535 Metric)	1414	625 mW	613 mW	600 mW	Surface Mount	350 mA	1.5 A	130 °	2.8 V	463 nm	0.095 in	85 °C	Blue	465 nm	460 nm	463 nm
CreeLED, Inc. XTEARY-02-0000-000000N01	0.136 in	0.136 in	1414 (3535 Metric)	SMD	575 mW	563 mW	550 mW	Surface Mount	350 mA	1.5 A	140 °	2.85 V	458 nm	0.1 in	85 °C	Blue	465 nm	450 nm	458 nm	5 °C/W
