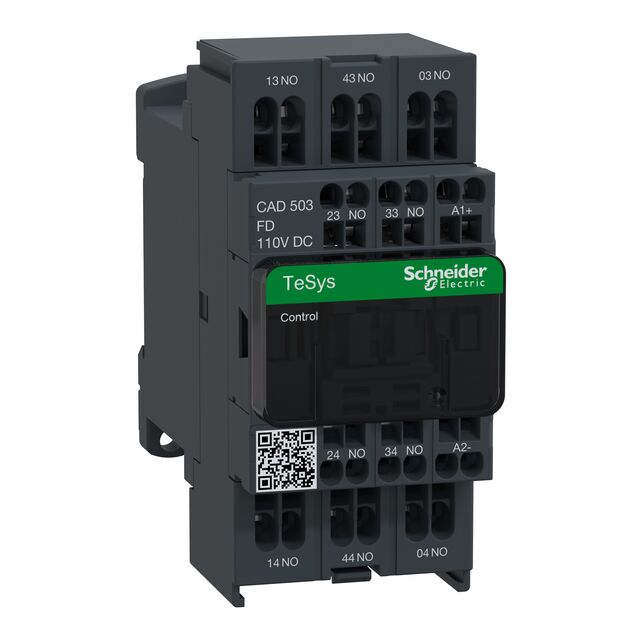

CAD503FD
General Purpose Relay 5PST-NO (5 Form A) 110VDC Coil DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | CAD503FD |
|---|---|
| Approval Agency | CB, UL, EAC, CE, UKCA, CSA, CCC |
| Coil Type | Non Latching |
| Coil Voltage | 110 V |
| Contact Form | A, 5, PST-NO, Form |
| Contact Rating (Current) | 10 A |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 77 VAC |
| Must Release Voltage | 11 VDC |
| Operate Time | 72 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 5 |
| Relay Type | General Purpose |
| Release Time | 24 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Spring Terminal |
