LCCA31015-M2
ActivePasternack
OUTDOOR RATED N MALE RIGHT ANGLE
LCCA31015-M2
ActivePasternack
OUTDOOR RATED N MALE RIGHT ANGLE
Description
General part information
LCCA31015-M2

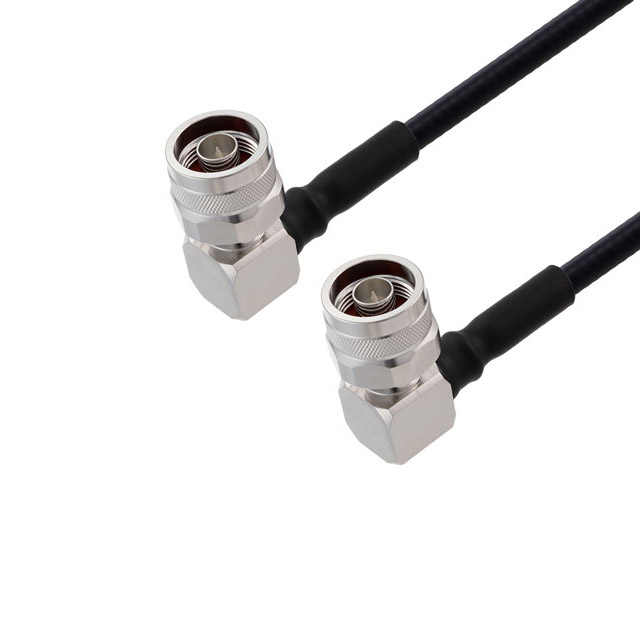

Cable Assembly Coaxial N-Type to N-Type SPO-250 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31015-M2 |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPO |
| Cable Type Size | 250 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length (ft) | 6.6 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
