FMCA2031-24
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 2
FMCA2031-24
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 2
Description
General part information
FMCA2031-24

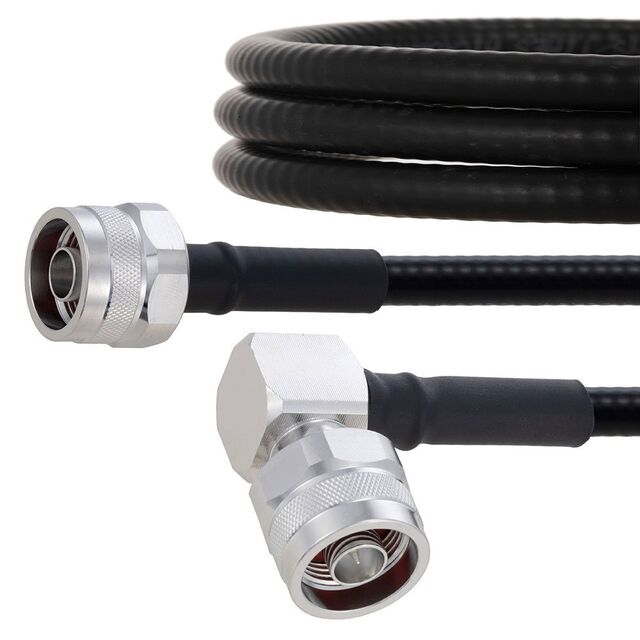

Cable Assembly Coaxial N-Type to N-Type SPF-250 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2031-24 |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPF |
| Cable Type Size | 250 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 24 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
