Specification	ADM6-60-08.5-L-4-2-A-TR

Connector Type	MALE, High Density Array
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Board Guide
Height Above Board	0.433 in, 0.409 in
Mated Stacking Height Options	12mm, 16mm
Mounting Type	Surface Mount
Number of Positions	240
Number of Rows	4
Pitch	0.025 in

ADM6 Series

Part	Features	Height Above Board	Pitch	Contact Finish	Number of Rows	Mounting Type	Number of Positions	Mated Stacking Height Options	Contact Finish Thickness	Connector Type
Samtec Inc. ADM6-10-01.5-L-4-2-A-TR	Board Guide	0.134 in	0.025 in	Gold	4	Surface Mount	40	5mm 9mm	10 Ąin	High Density Array MALE
Samtec Inc. ADM6-60-01.5-S-4-2-A-TR	Board Guide	0.134 in	0.025 in	Gold	4	Surface Mount	240	5mm 9mm	30 µin	High Density Array MALE
Samtec Inc. ADM6-20-01.5-L-4-2-A-TR	Board Guide	0.134 in	0.025 in	Gold	4	Surface Mount	80	5mm 9mm	10 Ąin	High Density Array MALE
Samtec Inc. ADM6-20-06.5-L-4-2-A-TR	Board Guide	0.331 in 0.359 in	0.025 in	Gold	4	Surface Mount	80	10mm 14mm	10 Ąin	High Density Array MALE

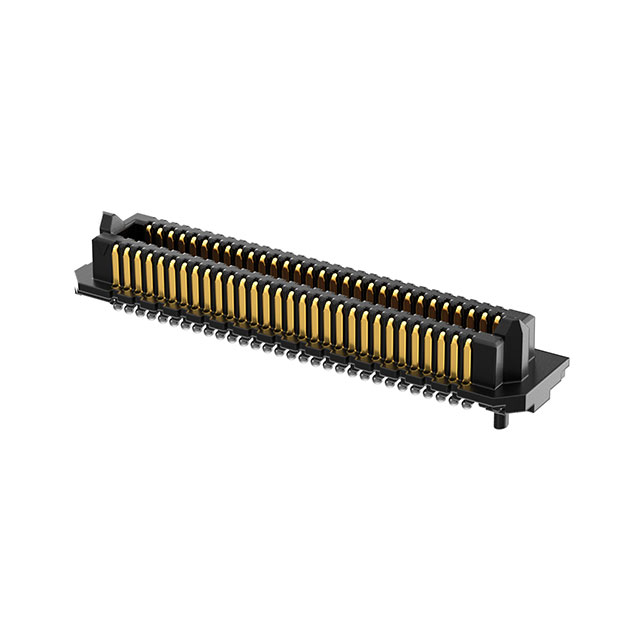

Samtec Inc. ADM6-30-01.5-L-4-2-A-TR	Board Guide	0.134 in	0.025 in	Gold	4	Surface Mount	120	5mm 9mm	10 Ąin	High Density Array MALE
Samtec Inc. ADM6-10-06.5-L-4-2-A-TR	Board Guide	0.331 in 0.359 in	0.025 in	Gold	4	Surface Mount	40	10mm 14mm	10 Ąin	High Density Array MALE

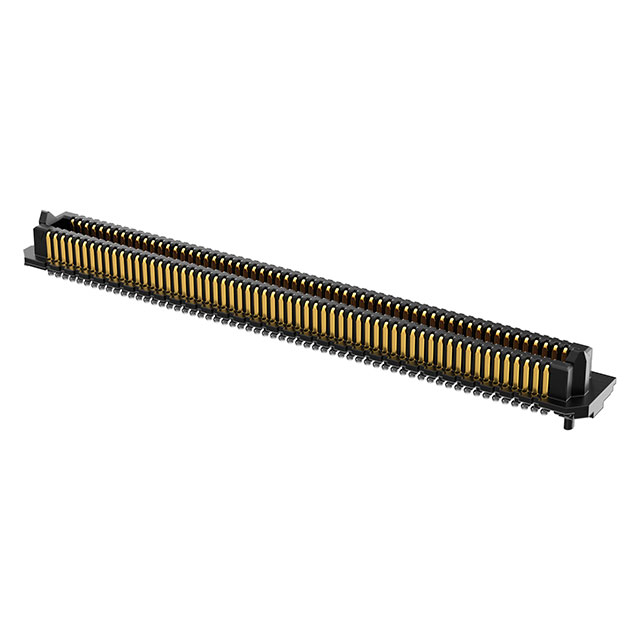

Samtec Inc. ADM6-60-01.5-L-4-2-A-TR	Board Guide	0.134 in	0.025 in	Gold	4	Surface Mount	240	5mm 9mm	10 Ąin	High Density Array MALE
Samtec Inc. ADM6-60-01.5-STL-4-1-A-TR	Board Guide	0.134 in	0.025 in	Gold	4	Surface Mount	240	5mm 9mm	30 µin	High Density Array MALE
Samtec Inc. ADM6-40-01.5-L-4-2-A-TR	Board Guide	0.134 in	0.025 in	Gold	4	Surface Mount	160	5mm 9mm	10 Ąin	High Density Array MALE
Samtec Inc. ADM6-100-01.5-L-4-2-TR		0.134 in	0.025 in	Gold	4	Surface Mount	400	5mm 9mm	10 Ąin	High Density Array MALE
