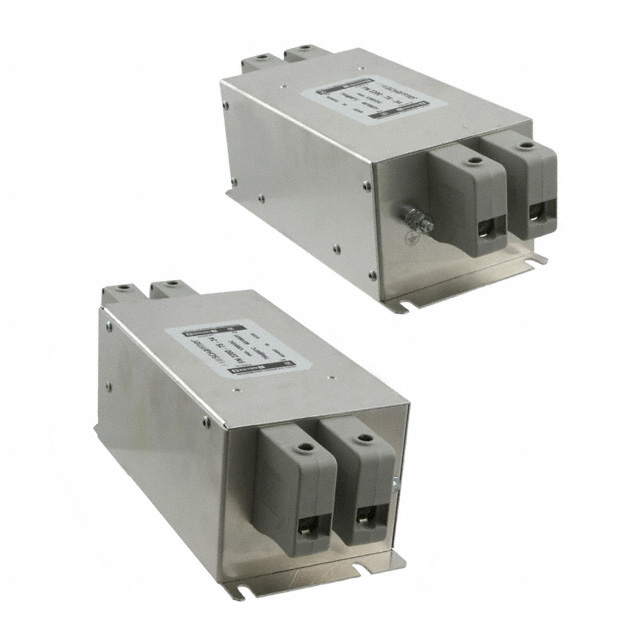

Specification	FN2200-75-34

Applications	Photovoltaic Inverter
Approval Agency	ENEC, cURus
Configuration	Single Stage
Current	75 A
Filter Type	DC
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Termination Style	Terminal Block
Voltage - Rated DC	1.2 kV

Schaffner FN2200 Series

Part	Filter Type	Current	Voltage - Rated DC	Termination Style	Configuration	Mounting Type	Applications	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Frequency - Operating
TE Connectivity AMP Connectors FN2200B-150-40	DC	150 A	1.2 kV	Terminal Block	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC	100 °C	-40 °C
TE Connectivity AMP Connectors FN2200-150-40	DC	150 A	1.2 kV	Terminal Block	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC	100 °C	-40 °C
TE Connectivity AMP Connectors FN2200-600-99	DC	600 A	1.2 kV	Terminal Post	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC	100 °C	-40 °C
TE Connectivity AMP Connectors FN2200B-75-34	DC	75 A	1.2 kV	Terminal Block	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC	100 °C	-40 °C
TE Connectivity AMP Connectors FN2200B-2300-99	DC	2.3 kA	1.2 kV	Terminal Post	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC UKCA	100 °C	-40 °C	DC
TE Connectivity AMP Connectors FN2200-250-99	DC	250 A	1.2 kV	Terminal Post	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC	100 °C	-40 °C
TE Connectivity AMP Connectors FN2200B-100-35	DC	100 A	1.2 kV	Terminal Block	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC	100 °C	-40 °C
TE Connectivity AMP Connectors FN2200-800-99	DC	800 A	1.2 kV	Terminal Post	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC	100 °C	-40 °C
TE Connectivity AMP Connectors FN2200B-1000-99	DC	1000 A	1.2 kV	Terminal Post	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC	100 °C	-40 °C
TE Connectivity AMP Connectors FN2200-400-99	DC	400 A	1.2 kV	Terminal Post	Single Stage	Chassis Mount	Photovoltaic Inverter	cURus ENEC	100 °C	-40 °C
