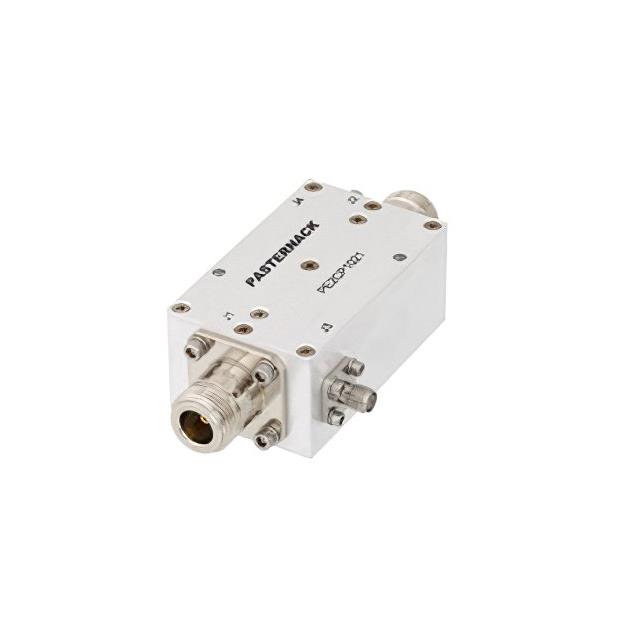

PE2CP1021
ActivePasternack
DUAL DIRECTIONAL 50 DB N COUPLER
PE2CP1021
ActivePasternack
DUAL DIRECTIONAL 50 DB N COUPLER
Description
General part information
PE2CP1021
RF Directional Coupler General Purpose 80MHz ~ 1GHz 50 ± 1.5dB 200W Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE2CP1021 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 50 dB |
| Coupling Factor Tolerance | 1.5 dB |
| Frequency (Max) | 1 GHz |
| Frequency (Min) | 80 MHz |
| Insertion Loss | 0.3 dB |
| Package / Case | Module |
| Package Name | Module |
| Power - Max | 200 W |
