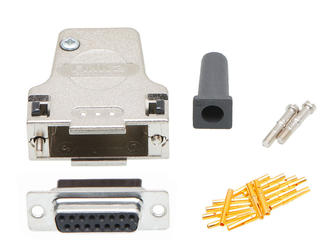

FCT BACKSHELL CONNECTOR KIT, METAL BACKSHELL, FEMALE STANDARD DENSITY D-SUB CONNECTOR, MACHINED CRIMP SIGNAL CONTACTS, 15 CIRCUITS, 45° ANGLE CABLE OUTLET

Find alt

Alpha

1731140968

Active

Molex

FCT BACKSHELL CONNECTOR KIT, METAL BACKSHELL, FEMALE STANDARD DENSITY D-SUB CONNECTOR, MACHINED CRIMP SIGNAL CONTACTS, 15 CIRCUITS, 45° ANGLE CABLE OUTLET

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

173114 Series

15 Position Two Piece Backshell Connector Silver 45° Shielded

Technical Specifications

Parameters and characteristics for this part

Specification	1731140968

Accessory Type	Two Piece Backshell
Cable Exit Angle	45 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	15pos, HD26pos
Compatible Shell Size	A
Features	Mating Screws
Hardware	Cable Clamp, Strain Relief, Assembly Hardware
Material	Zinc Die Cast
Number of Positions	15
Plating	Nickel
Primary Material	Metal
Shielding	Shielded

173114 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Material	Color	Features	Number of Rows	Connector Type	Contact Type	Current Rating	Primary Material	Finish	Shell Material	Mounting Type	Shell Size, Connector Layout	Connector Style	Material Flammability Rating	Termination	Number of Positions	Flange Feature	Number of Positions	Hardware	Material	Plating	Accessory Type	Shielding	Cable Type	Cable Exit Angle	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Housing Color	Convert From (Adapter End) Pin Count	Convert From (Adapter End) Pin Gender	Convert From (Adapter End) Type	Convert To (Adapter End) Pin Count	Convert To (Adapter End)
Molex 1731141002	-55 °C	130 °C	Glass Filled Polyester	Copper Alloy	Black	Board Lock	2	Female Sockets Receptacle	Signal	5 A	Metal	Tin-Nickel Plated	Steel	Right Angle Through Hole	2 (DA A)	D-Sub - Stacked	UL94 V-0	Solder	15	Housing Shell (M3)
Molex 1731140858
Molex 1731140274	-55 °C	130 °C	Glass Filled Polyester	Copper Alloy	Black	Board Lock	2	Female Socket Male Pins Plug Receptacle	Signal	5 A	Metal	Tin-Nickel Plated	Steel	Right Angle Through Hole	1 (DE E)	D-Sub - Stacked	UL94 V-0	Solder	9	Board Side (4-40)	9
Molex 1731140386					Silver	Dust Tight/Waterproof (IP67)					Plastic								9			Assembly Hardware Cable Clamp Strain Relief	Acrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Nickel	One Piece Backshell	Shielded	Round	180 °
Molex 1731140431
Molex 1731140993					Silver	Mating Screws					Metal											Assembly Hardware Cable Clamp Strain Relief	Zinc Die Cast	Nickel	Two Piece Backshell	Shielded	Round	180 °	7	5	2
Molex 1731140230
Molex 1731140078							2							Free Hanging (In-Line) Right Angle		Connector Saver										Shielded						White	15 pins	Female	D-Sub	15 pins	D-Sub Pin Male
Molex 1731140430
Molex 1731140308
