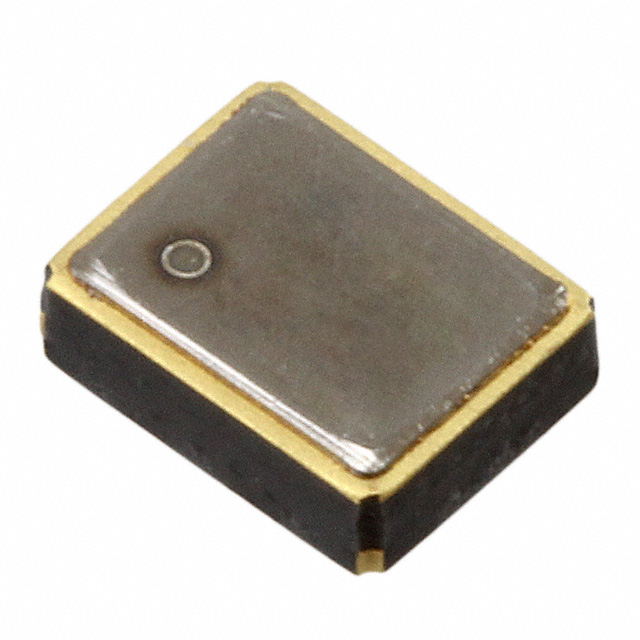

KT3225T32768EAW30TAA
ObsoleteKYOCERA AVX
XTAL OSC TCXO 32.7680KHZ CMOS
KT3225T32768EAW30TAA
ObsoleteKYOCERA AVX
XTAL OSC TCXO 32.7680KHZ CMOS
Description
General part information
KT3225T32768EAW30TAA
32.768 kHz TCXO CMOS Oscillator 3V 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | KT3225T32768EAW30TAA |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 5.5 µA |
| Frequency | 0.032768 MHz |
| Frequency Stability | 5 ppm |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | No Lead, 8-SMD |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
