MGDDI-06-R-E

Active

Gaia Converter

DC DC CONVERTER 12V 12V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

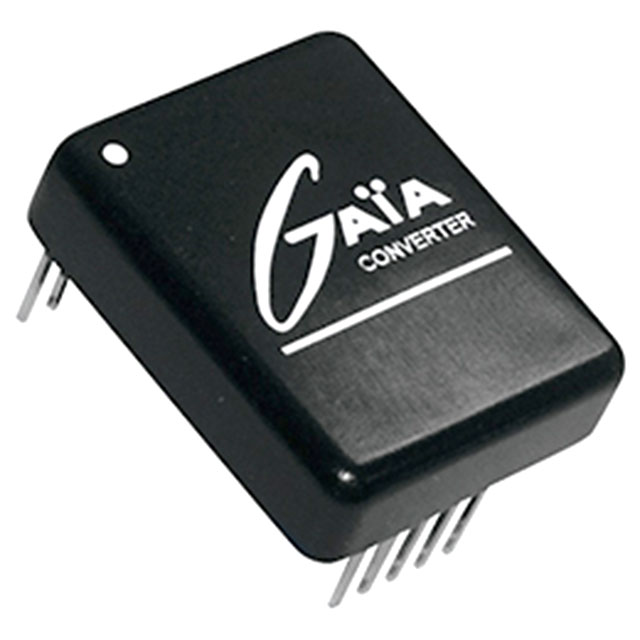

MGDDI-06-R-E

Active

Gaia Converter

DC DC CONVERTER 12V 12V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 80.64
		5	$ 80.01
		10	$ 79.38
		25	$ 76.86
		50	$ 73.08
		100	$ 68.04

Description

General part information

MGDDI Series

Isolated Module DC DC Converter 2 Output 12V 12V 250mA, 250mA 12V - 160V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MGDDI-06-R-E	MGDDI Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	250 mA	125 - 825 mA
Current - Output (Max)	250 mA	250 - 825 mA
Current - Output (Max)	-	125 - 425 mA
Current - Output (Max)	-	2.5 A
Current - Output (Max)	-	2.5 A
Current - Output (Max)	-	600 mA
Efficiency	83 %	83 - 91 %
Features	-	Baseplate
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	10-DIP Module	10-DIP Module, 16-DIP Module
Power (Watts)	6 W	6 - 60 W
Size / Dimension	-	12.5 mm
Size / Dimension	-	72.7 mm
Size / Dimension	-	47.9 mm
Size / Dimension [x]	1.1 "	1.1 - 1.58 "
Size / Dimension [x]	28 mm	2.86 - 40.1 mm
Size / Dimension [y]	0.78 in	0.78 - 1.03 in
Size / Dimension [y]	19.8 mm	1.89 - 26.1 mm
Size / Dimension [z]	0.32 "	0.32 - 0.5 "
Size / Dimension [z]	8.2 mm	0.49 - 12.7 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	160 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	12 V	5 - 24 V
Voltage - Output 2	12 V	5 - 24 V

MGDDI Series

DC DC CONVERTER 24V 24V 6W

Part	Voltage - Output 2	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Type	Number of Outputs	Voltage - Output 1	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Applications	Package / Case	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Gaia Converter MGDDI-06-R-I	24 V	2250 VDC	100 °C	-40 °C	83 %	Through Hole	0.78 in	1.1 "	0.32 "	8.2 mm	28 mm	19.8 mm	160 V	Isolated Module	2	24 V	6 W	125 mA	125 mA	ITE (Commercial)	10-DIP Module
Gaia Converter MGDDI-06-R-F	15 V	2250 VDC	100 °C	-40 °C	83 %	Through Hole	0.78 in	1.1 "	0.32 "	8.2 mm	28 mm	19.8 mm	160 V	Isolated Module	2	15 V	6 W			ITE (Commercial)	10-DIP Module
Gaia Converter MGDDI-20-R-I	24 V	2250 VDC	100 °C	-40 °C	90 %	Through Hole	1.03 in	1.58 "	0.5 in	12.7 mm	40.1 mm	26.1 mm	160 V	Isolated Module	2	24 V	20 W	425 mA	425 mA	ITE (Commercial)	16-DIP Module
Gaia Converter MGDDI-06-R-E	12 V	2250 VDC	100 °C	-40 °C	83 %	Through Hole	0.78 in	1.1 "	0.32 "	8.2 mm	28 mm	19.8 mm	160 V	Isolated Module	2	12 V	6 W	250 mA		ITE (Commercial)	10-DIP Module	250 mA
Gaia Converter MGDDI-20-R-E	12 V	2250 VDC	100 °C	-40 °C	90 %	Through Hole	1.03 in	1.58 "	0.5 in	12.7 mm	40.1 mm	26.1 mm	160 V	Isolated Module	2	12 V	20 W	825 mA		ITE (Commercial)	16-DIP Module	825 mA
Gaia Converter MGDDI-60-R-E	12 V	2250 VDC	100 °C	-40 °C	91 %	Through Hole				0.49 in	2.86 "	1.89 "	160 V	Isolated Module	2	12 V	60 W			ITE (Commercial)			12.5 mm	72.7 mm	47.9 mm	Baseplate	2.5 A	2.5 A
Gaia Converter MGDDI-06-R-C	5 V	2250 VDC	100 °C	-40 °C	83 %	Through Hole	0.78 in	1.1 "	0.32 "	8.2 mm	28 mm	19.8 mm	160 V	Isolated Module	2	5 V	6 W			ITE (Commercial)	10-DIP Module								600 mA
