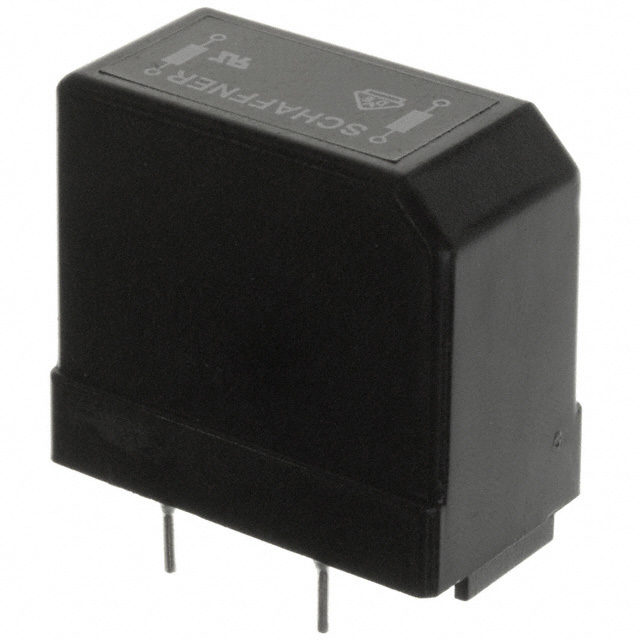

Specification	RN242-4-02-3M3

Approval Agency	VDE, UR, ENEC
Current Rating (Max)	4 A
DC Resistance (DCR) (Max)	67 mOhm
DC Resistance (DCR) (Typ)	67 mOhm
Filter Type	Power Line
Height (Max)	1.362 in
Inductance	3.3 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	4 PC Pin, Vertical
Package Leads	4 Leads
Package Name	Vertical
Size / Dimension Length	1.22 in
Size / Dimension Width	0.709 in
Voltage Rating - AC	300 V

Schaffner RN-Series Series

...

Part	DC Resistance (DCR) (Typ)	DC Resistance (DCR) (Max)	Inductance	Approval Agency	Current Rating (Max)	Package Leads	Package / Case	Package Name	Mounting Type	Height (Max)	Number of Lines	Voltage Rating - AC	Size / Dimension Diameter	Size / Dimension Width	Filter Type	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length
TE Connectivity AMP Connectors RN102-0.3-02-12M	1.1 Ohm	1.1 Ohm	12 mH	ENEC UR VDE	300 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.366 in	2	300 V	0.551 in	0.551 in	Power Line	100 °C	-40 °C
TE Connectivity AMP Connectors RN214-0.5-02-39M	830 mOhm	830 mOhm	39 mH	ENEC UR VDE	500 mA	4 Leads	4 PC Pin Vertical	Vertical	Through Hole	0.996 in	2	300 V		0.61 in	Power Line	100 °C	-40 °C	0.906 in
TE Connectivity AMP Connectors RN102-0.3-02-12M	1.1 Ohm	1.1 Ohm	12 mH	ENEC UR VDE	300 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.366 in	2	300 V	0.551 in	0.551 in	Power Line	100 °C	-40 °C
TE Connectivity AMP Connectors RN142-0.5-02-82M	2.7 Ohm	2.7 Ohm	82 mH	ENEC UR VDE	500 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.787 in	2	300 V		1.28 in	Power Line	100 °C	-40 °C	1.303 in
TE Connectivity AMP Connectors RN216-0.5-02-47M	960 mOhm	960 mOhm	47 mH	ENEC UR VDE	500 mA	4 Leads	4 PC Pin Vertical	Vertical	Through Hole	0.996 in	2	300 V		0.61 in	Power Line	100 °C	-40 °C	0.906 in
TE Connectivity AMP Connectors RN102-0.6-02-4M4	380 mOhm	380 mOhm	4.4 mH	ENEC UR VDE	600 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.366 in	2	300 V	0.551 in	0.551 in	Power Line	100 °C	-40 °C
TE Connectivity AMP Connectors RN112-1.5-02-3M3	102 mOhm	102 mOhm	3.3 mH	ENEC UR VDE	1.5 A	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.508 in	2	300 V		0.673 in	Power Line	100 °C	-40 °C	0.697 in
TE Connectivity AMP Connectors RN232-1.6-02-10M	170 mOhm	170 mOhm	10 mH	ENEC UR VDE	1.6 A	4 Leads	4 PC Pin Vertical	Vertical	Through Hole	1.362 in	2	300 V		0.709 in	Power Line	100 °C	-40 °C	1.22 in
TE Connectivity AMP Connectors RN112-0.5-02-15M	700 mOhm	700 mOhm	15 mH	ENEC UR VDE	500 mA	4 Leads	4 PC Pin Horizontal	Horizontal	Through Hole	0.508 in	2	300 V		0.673 in	Power Line	100 °C	-40 °C	0.697 in
TE Connectivity AMP Connectors RN202-0.6-02-4M4	380 mOhm	380 mOhm	4.4 mH	ENEC UR VDE	600 mA	4 Leads	4 PC Pin Vertical	Vertical	Through Hole	0.543 in	2	300 V		0.346 in	Power Line	100 °C	-40 °C	0.717 in
