HR-SCUF2X2
UnknownFDK America, Inc.
BATTERY PACK NIMH 4.8V SC
HR-SCUF2X2
UnknownFDK America, Inc.
BATTERY PACK NIMH 4.8V SC
Description
General part information

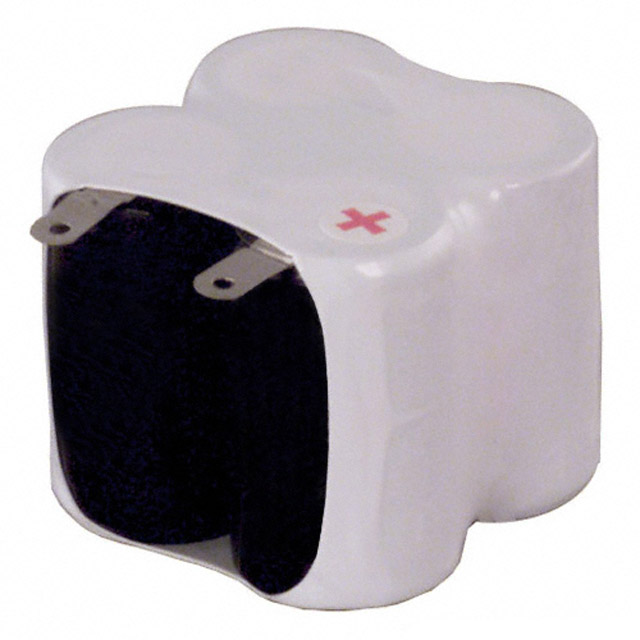

HR-SCUF2X2
SC 4.8 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HR-SCUF2X2 |
|---|---|
| Battery Cell Size | SC |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 2.7 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 4 |
| Rechargeability | Yes |
| Size / Dimension Height | 1.74 in |
| Size / Dimension Length | 1.85 in |
| Size / Dimension Width | 1.85 in |
| Structure | Side to Side |
| Structure Cells | 2 |
| Structure Rows | 2 |
| Termination Style | Solder Tab |
| Voltage - Rated | 4.8 V |
| Weight | 235.87 g |
