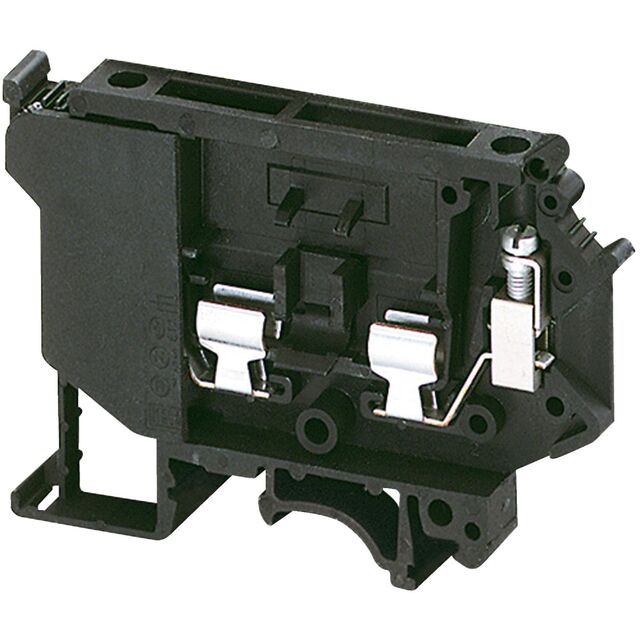

Specification	NSYTRV42SF5LD

Color	Black
Current - IEC	6.3 A
Current - UL	12 A
Disconnect Type	Fuse
Features	LED
Fuse Type	5mm x 20mm, 5mm x 25mm, 5mm x 30mm
Material - Insulation	Polyamide, PA66, Nylon 6/6
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length	8 mm
Terminal Width	8.2 mm
Termination Style	Screw
Type	Disconnect
Voltage - IEC	500 V
Voltage - UL	600 V
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.2 mm²
