BAC513
ActivePasternack

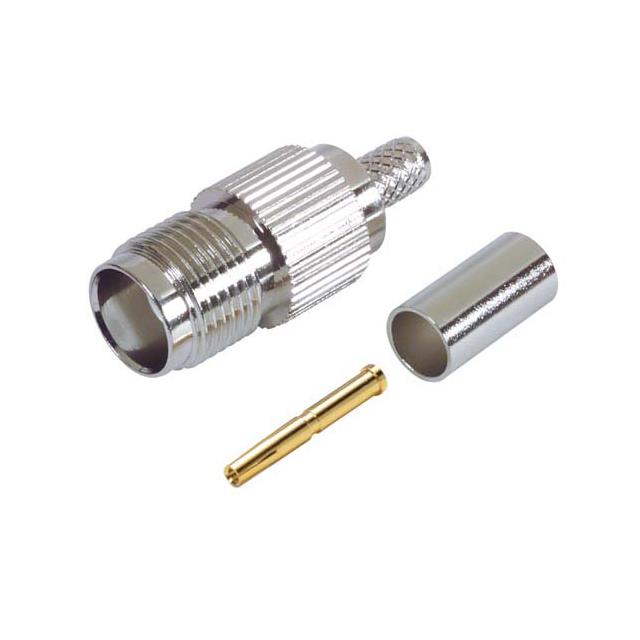

TNC JACK FOR RG58 CRIMP
BAC513
ActivePasternack
TNC JACK FOR RG58 CRIMP
Description
General part information
BAC513
TNC Connector Receptacle, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | BAC513 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
