SR30-10PE-4P(71)
ObsoleteHirose Electric Co Ltd

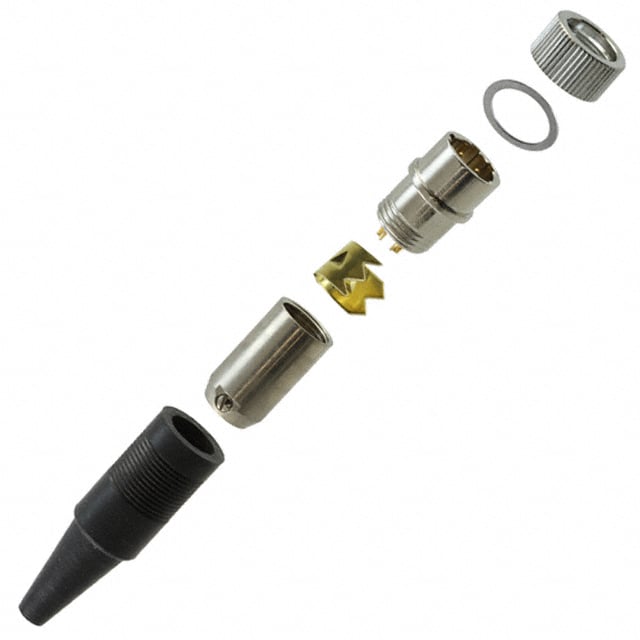

CONN PLUG MALE 4P GOLD SLDR CUP
SR30-10PE-4P(71)
ObsoleteHirose Electric Co Ltd
CONN PLUG MALE 4P GOLD SLDR CUP
Description
General part information
SR30-10PE-4P(71)
CONN PLUG MALE 4P GOLD SLDR CUP
Technical Specifications
Parameters and characteristics for this part
| Specification | SR30-10PE-4P(71) |
|---|---|
| Color | Black, Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Current Rating | 1 A |
| Fastening Type | Threaded |
| Features | Backshell, Coupling Nut, Clamp, Strain Relief |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 10 |
| Shell Size - Insert | 10 |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 100 VAC |
| Voltage Rating (DC) | 140 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
