Description
General part information

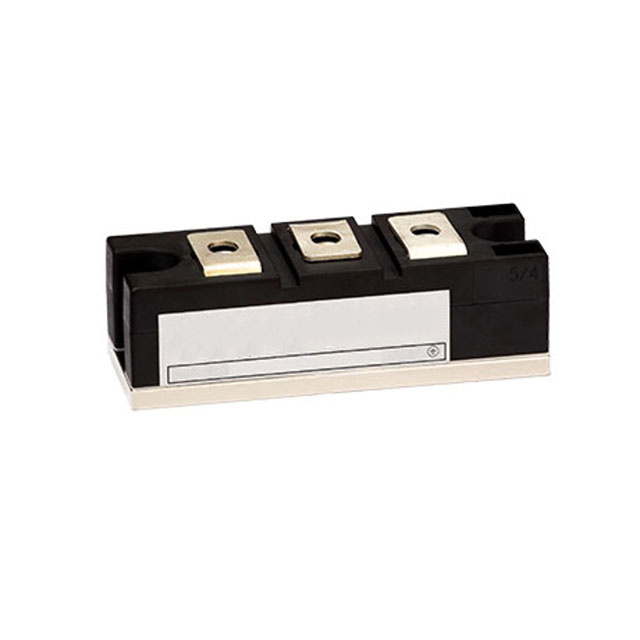

DD160N22KHPSA2
Diode Array 1 Pair Series Connection 2200 V 172A Chassis Mount Module
Technical Specifications
Parameters and characteristics for this part
| Specification | DD160N22KHPSA2 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 172 A |
| Current - Reverse Leakage | 20 mA |
| Diode Configuration | Series Connection |
| Diode Pair Count | 1 pair |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction | 150 °C |
| Package / Case | Module |
| Speed | Standard Recovery |
| Speed - Fast Recovery (Minimum) | 200 mA, 500 ns |
| Speed - Recovery Current | 200 mA, 200 mA |
| Speed - Recovery Time | 500 ns |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 2200 V |
| Voltage - Forward (Vf) (Max) | 1.4 V |
